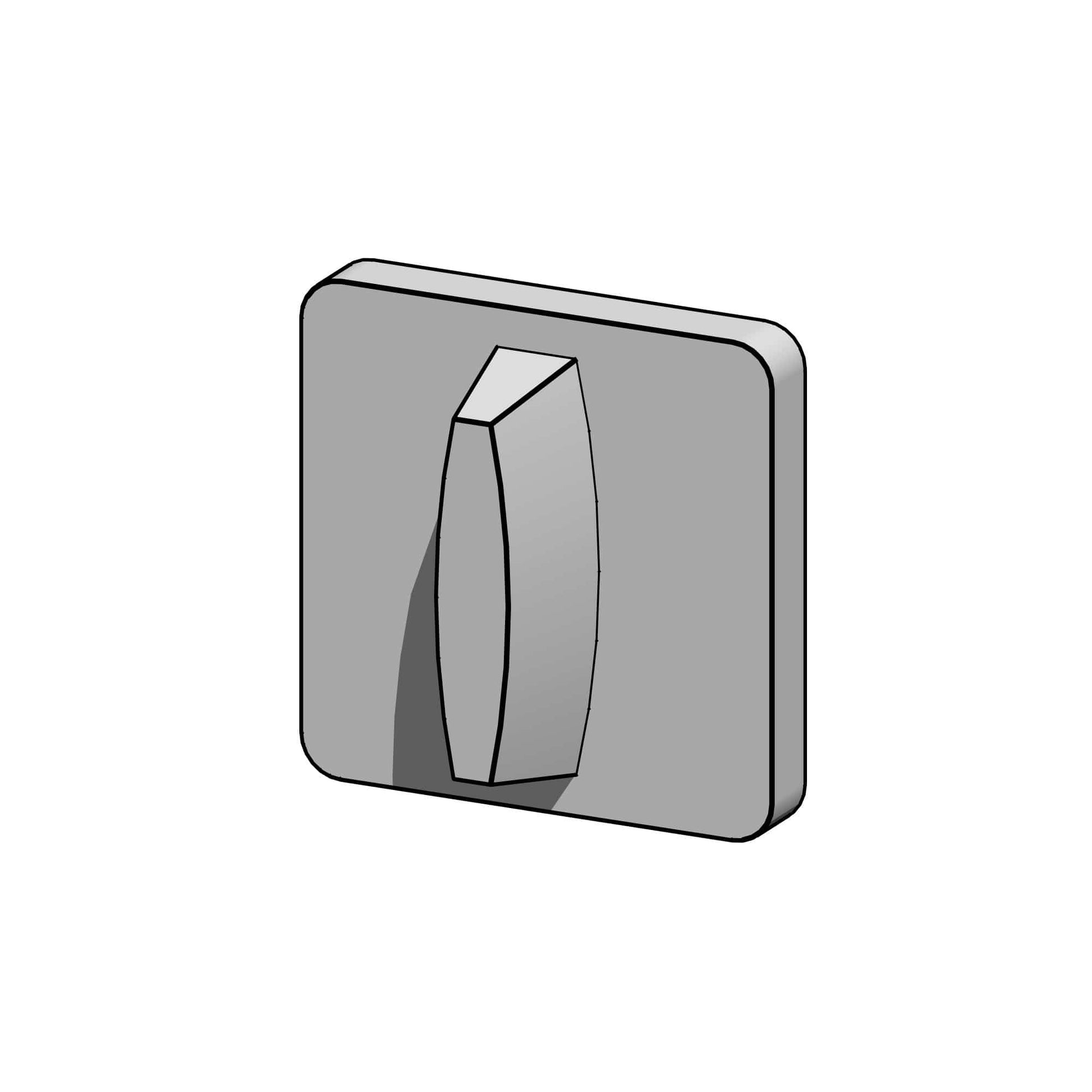

Square Flip Lock

Square Flip Lock

Regular price $0.00 AUD
Regular price Sale price $0.00 AUD
Sale Sold out
  • Revit Version 2020
  • Family Version 1.1

A simple, non-parametric Square Flip Lock.

This family is shared, so it can be loaded directly into your project and will appear in the nested hardware container of RevitHQ doors, ready to be swapped into your design without ever editing a family.

This Square Flip Lock family works perfectly as an interchangeable nested handle in our door families. To learn more about nested families refer to the links below.


Properties

Family Type: Face-Based

Family Category: Doors

Custom Object Styles:

  • Hardware

Shared Family: Yes

PBR Texures: Yes


Version 1 Updates

Version 1.1

  • Updated family and shared parameters for integration with BIMcraftHQ project template.
  • Improved parameter naming and organising.
  • Updated textures to new PBR type with 1024x1024px texture maps.
