Windows

All BIMcraftHQ window are designed for functionality and flexibility. With fully parametric, frames, sills, panels, and hardware. They allow for a huge amount of customization to accurately represent your intended design.

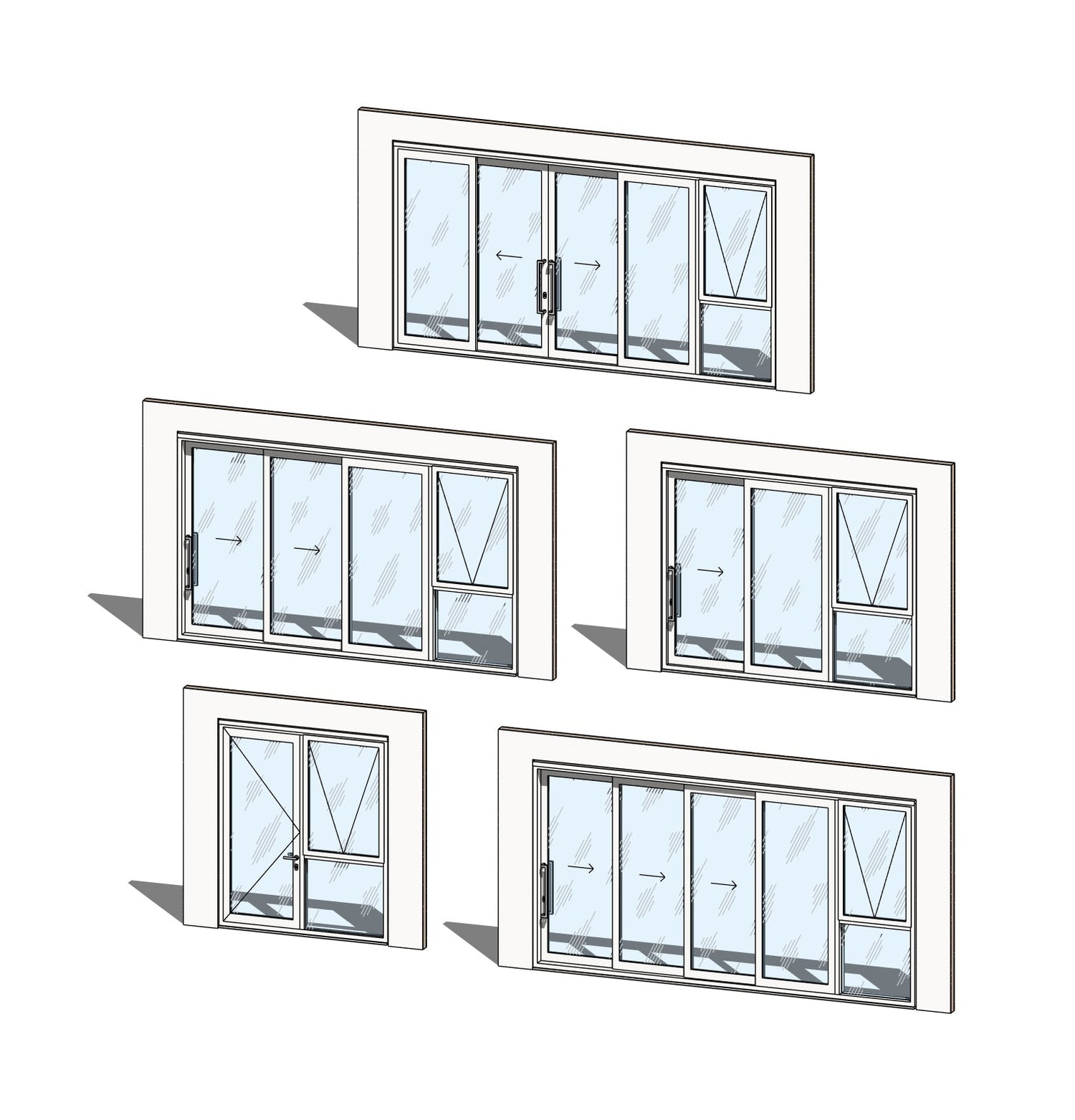

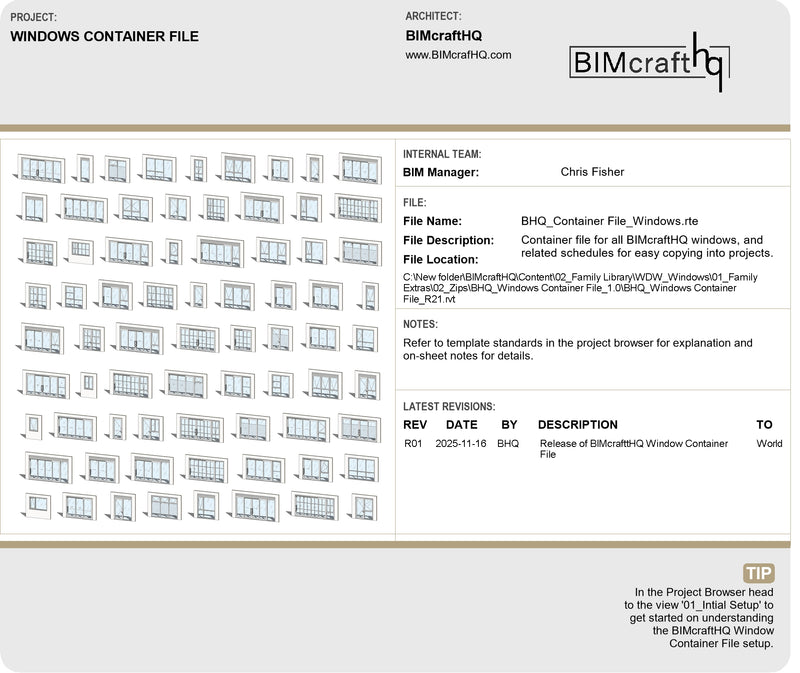

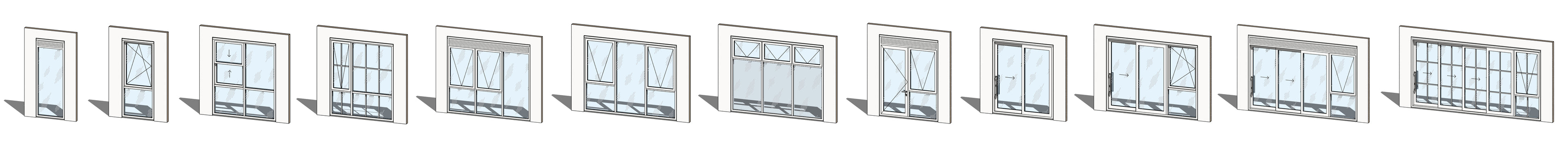

BIMcraftHQ Window Container Set

BIMcraftHQ Window Container Set

$400.00 $300.00
The BIMcraftHQ Window Container Set has been built to be your one stop shop for all of our advanced window families. ...
View product

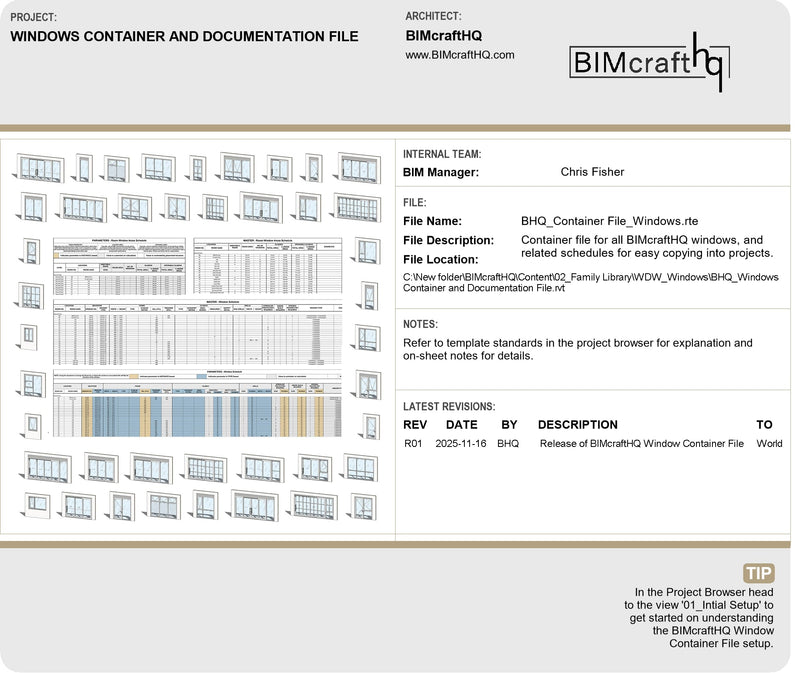

BIMcraftHQ - Container Set - BIMcraftHQ Window Container and Documentation Set

BIMcraftHQ Window Container and Documentation Set

$480.00 $350.00
The BIMcraftHQ Window Container and Documentation Set has been built to be your all in one window family collection a...
View product

Learn More

HIGHLY FLEXIBLE

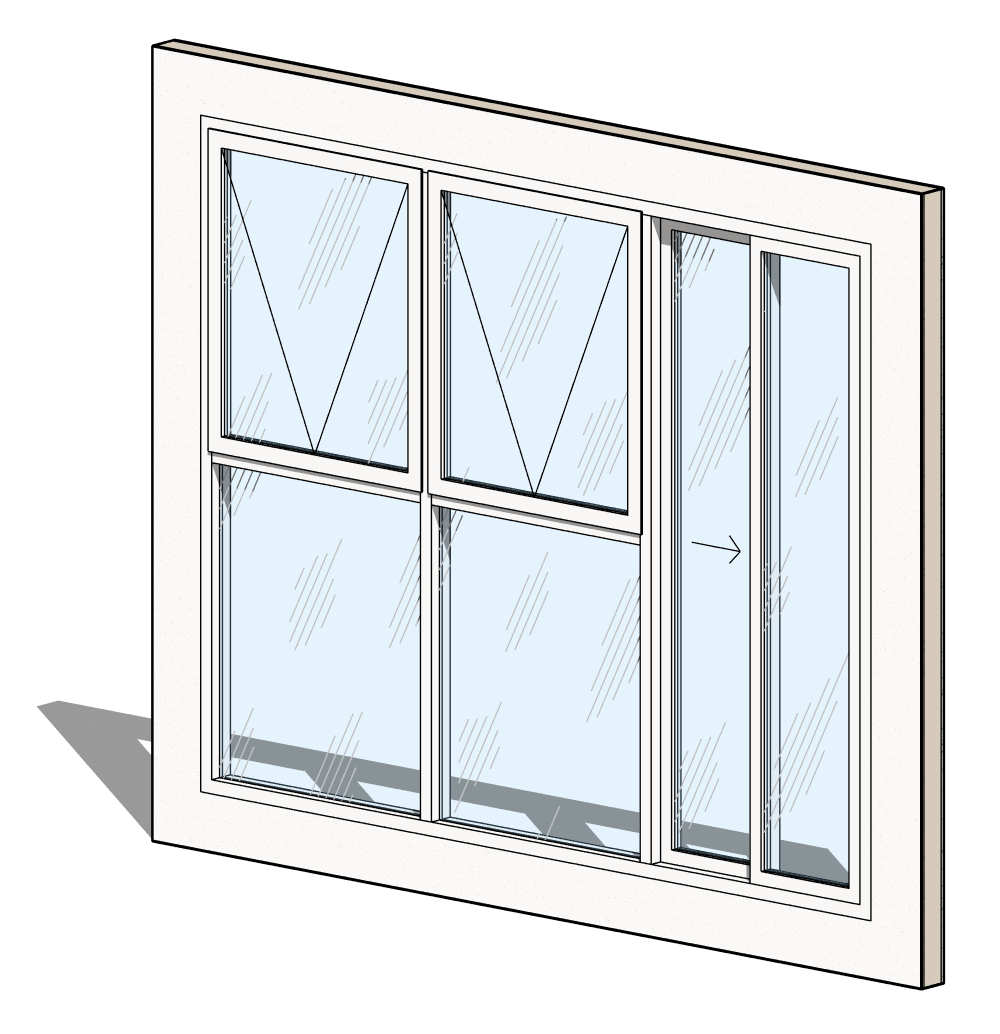

CHANGE ANY WINDOW PANEL TO ANY OPENING TYPE

​All BIMcraftHQ window families come pre-loaded with a large variety of window opening styles. If there is a window panel, it can be swapped.

  • Fixed
  • Awning
  • Casement (Left and Right Opening)
  • Hopper
  • Tilt-and-Turn (Left and Right Opening)
  • Sliding (Single and Double)
  • Hung (Single and Double)
BIMcraftHQ - Container Set - BIMcraftHQ Window Container Set

ENDLESS POSSIBILITIES

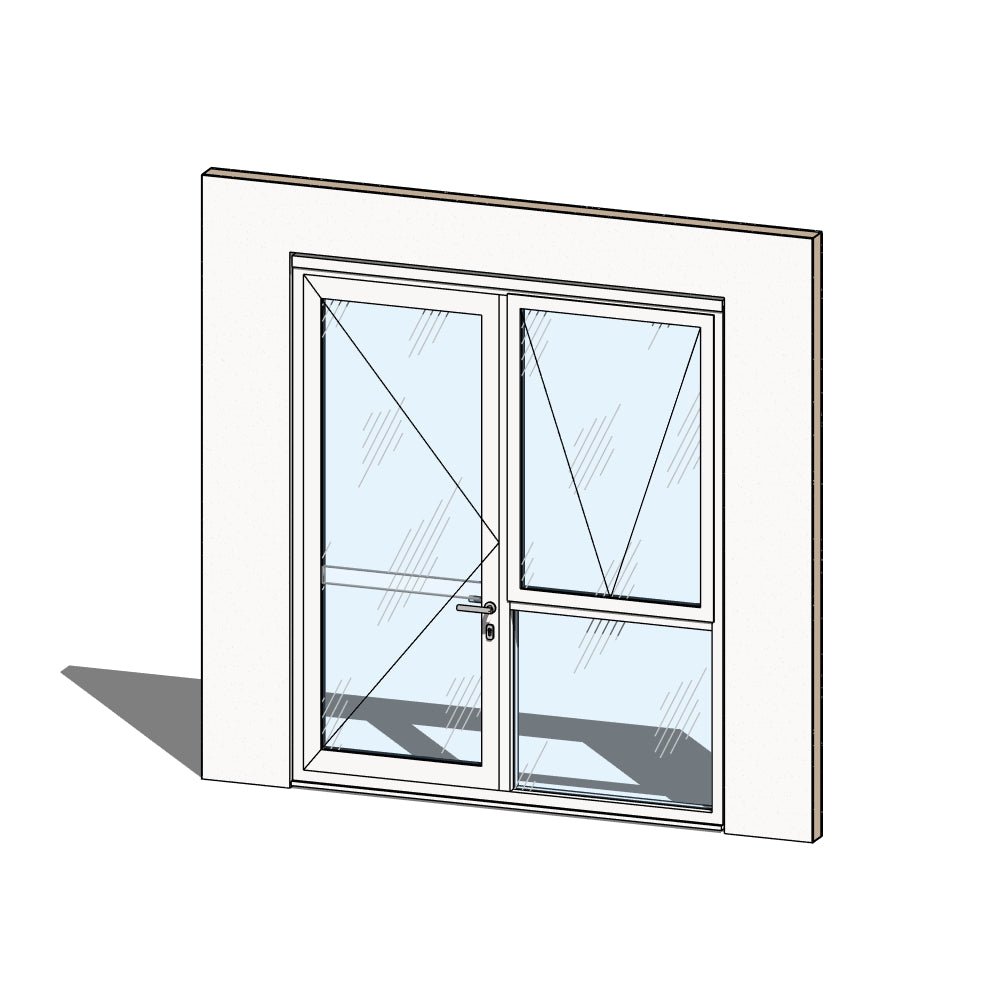

WINDOW WITH DOOR PANEL COMBINATONS FOR 1000'S OF OPTIONS

Swing and sliding, single panel to quadruple panel, side opening to center opening, and with the ability to reverse opening direction. BIMcraftHQ windows will cover 1000's of possible scenarios to suit every project.

  • Single Swing
  • Double Swing
  • Single Sliding (Side Opening)
  • Double Sliding (Center Opening)
  • Double Sliding (Side Opening)
  • Triple Sliding (Side Opening)

CLEAN

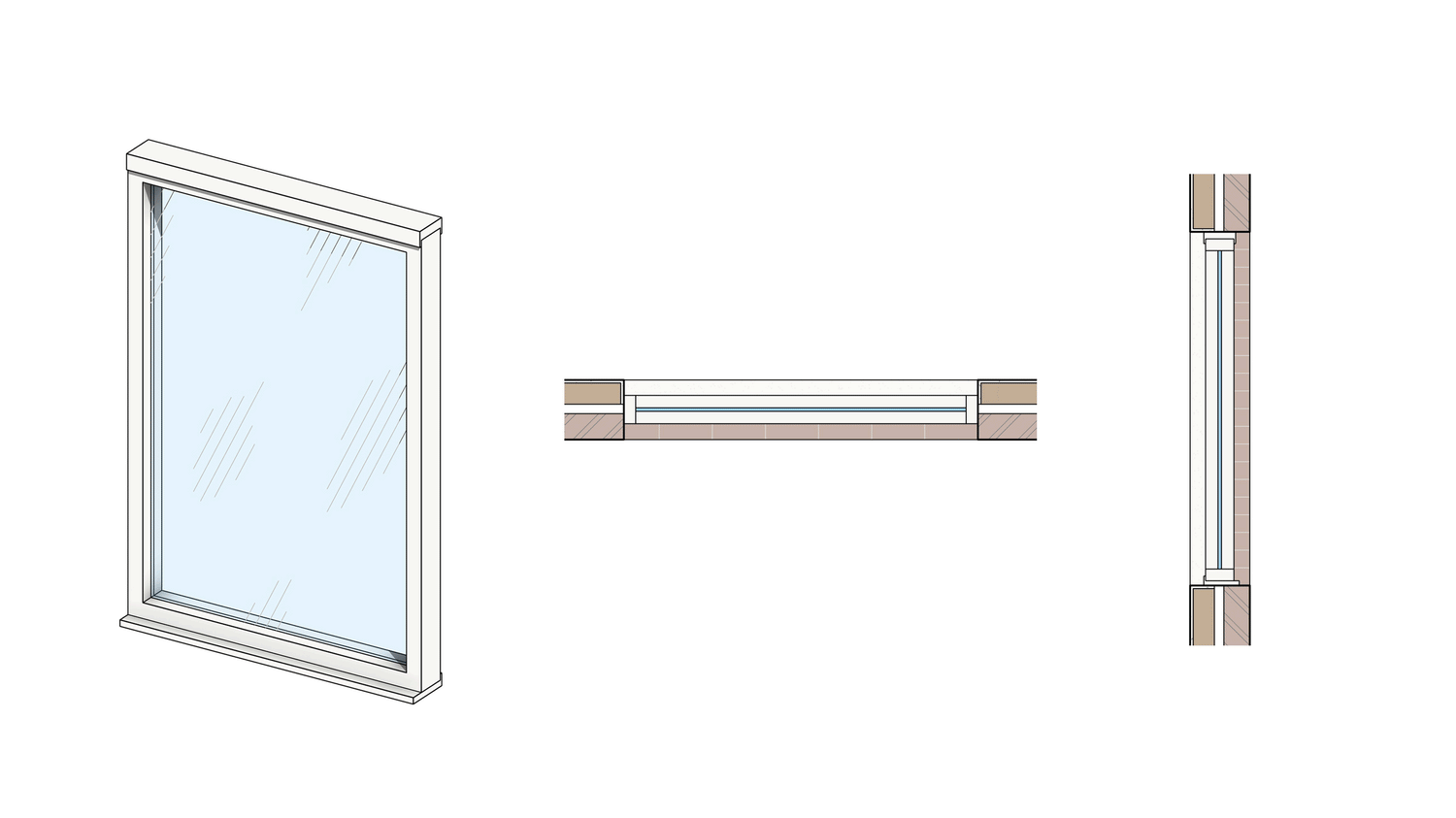

REFINED 2D AND 3D GRAPHIC APPEARANCE

Whether in 3D, plan, section, or elevation, BIMcraftHQ windows look great and represent their function correctly.

BIMcraftHQ - Container Set - Sample Window

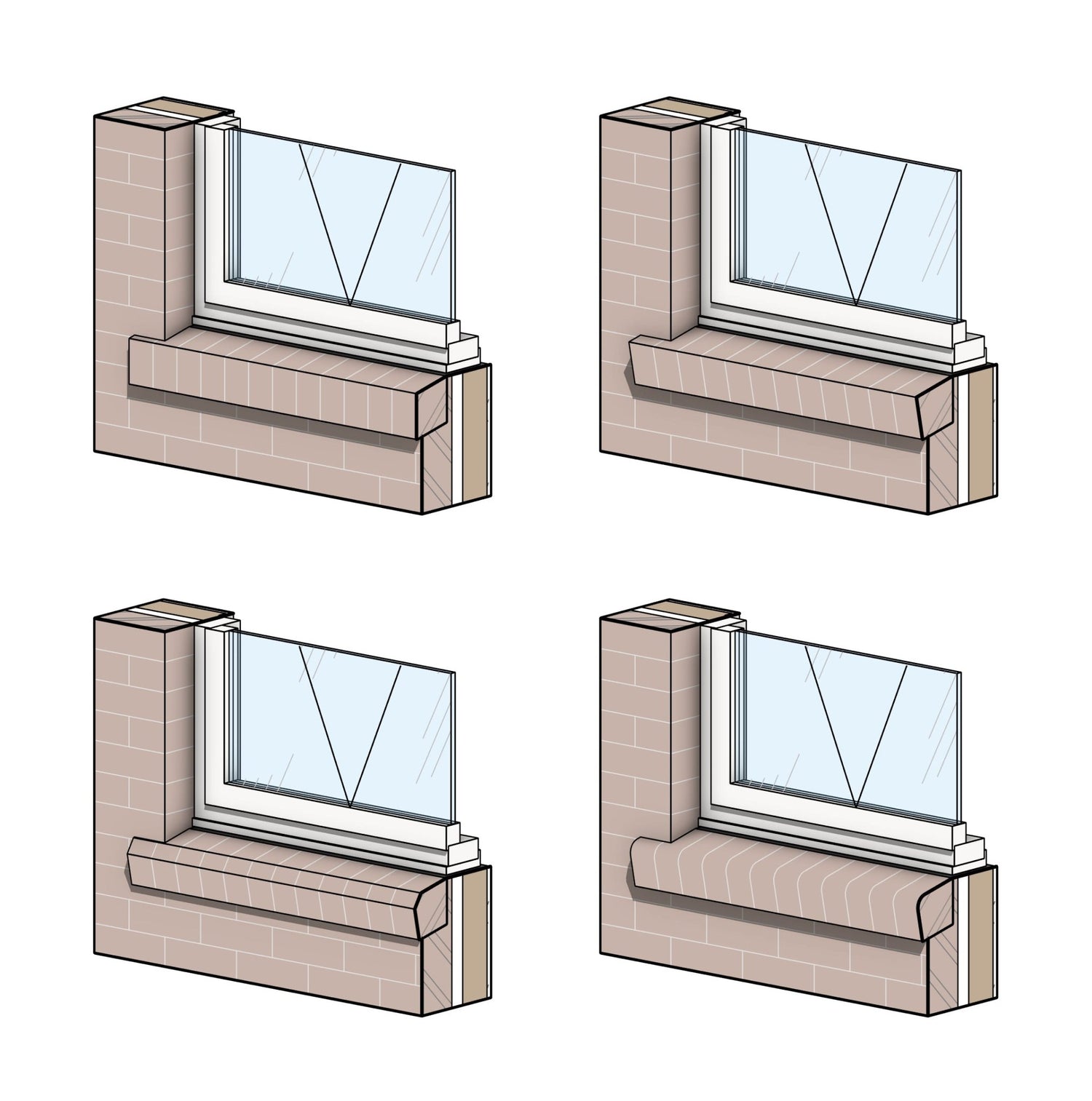

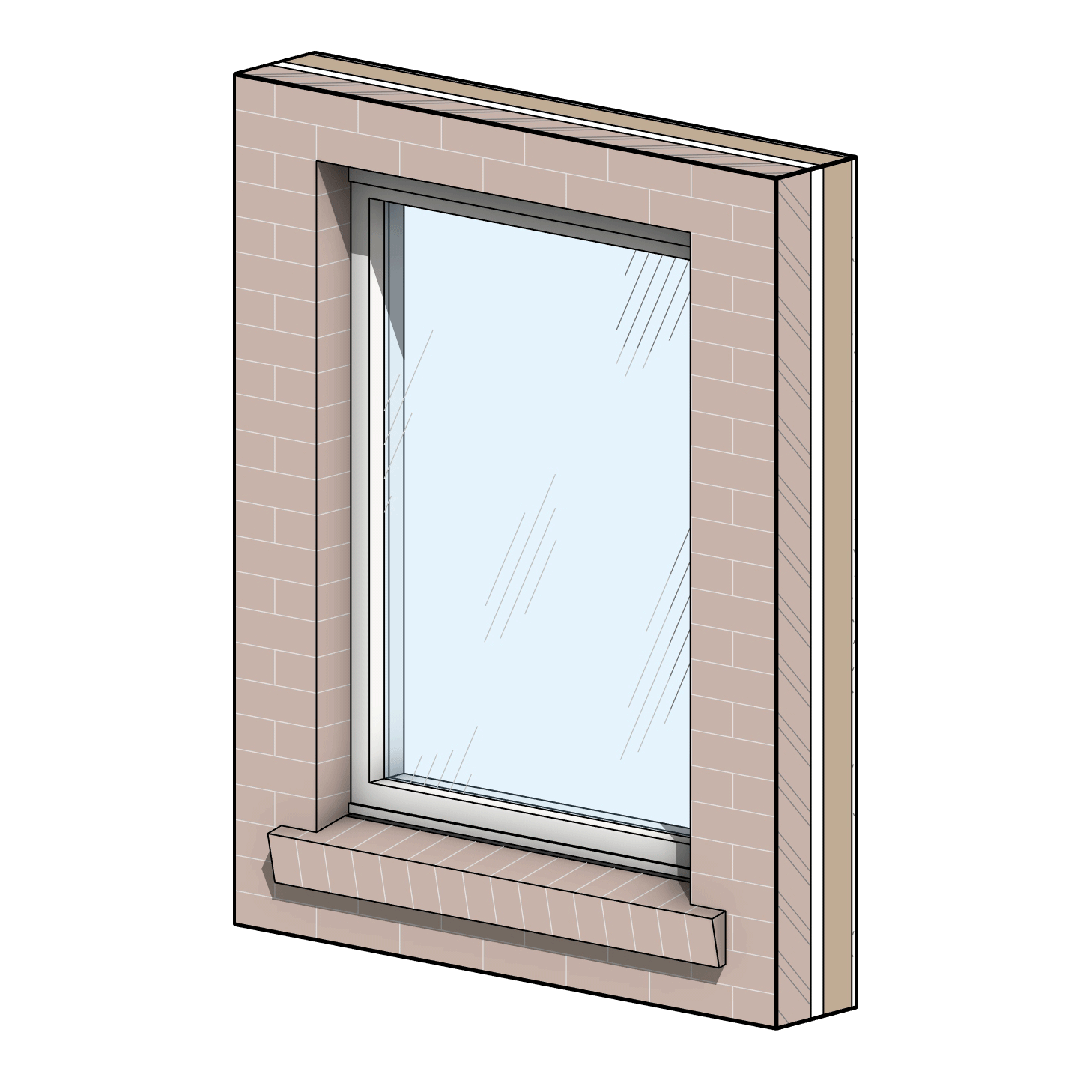

FLEXIBLE EXTERNAL SILL

All BIMcraftHQ windows have the option to enable an external sill with adjustable angle and size. Even its profile can be adjusted, with the options of right angle, flat face, chamfer or fillet.

FEATURE RICH

OPTIONAL GLAZING BARS

​To help you channel that classic window style, all BIMcraftHQ window families come with the ability to enable up to 3 horizontal and 3 vertical glazing bars per panel

SAVE YOUR TIME FOR THE BILLABLE TASKS

We have spent over 200 hours building, refining and testing these window families to be out of the box ready for your projects. What is a 200 hours of your time worth?

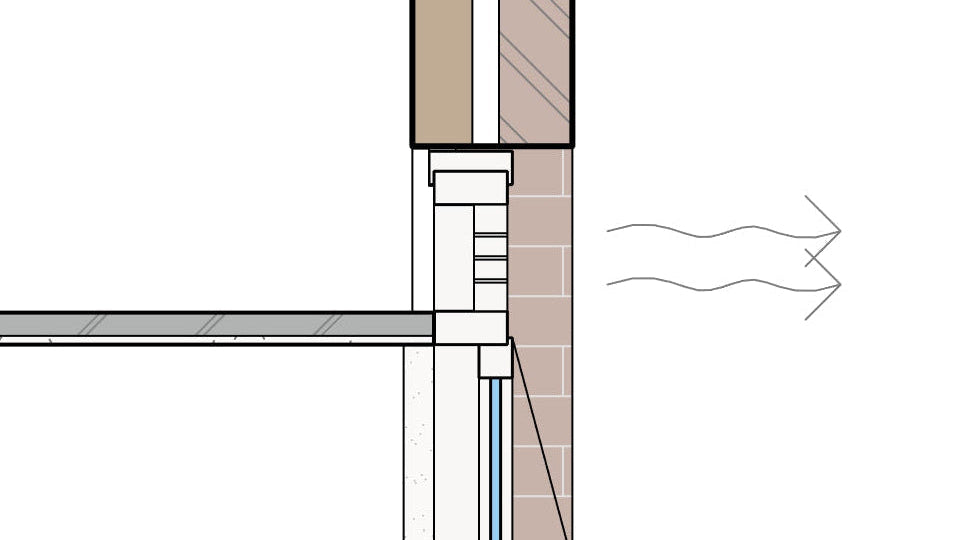

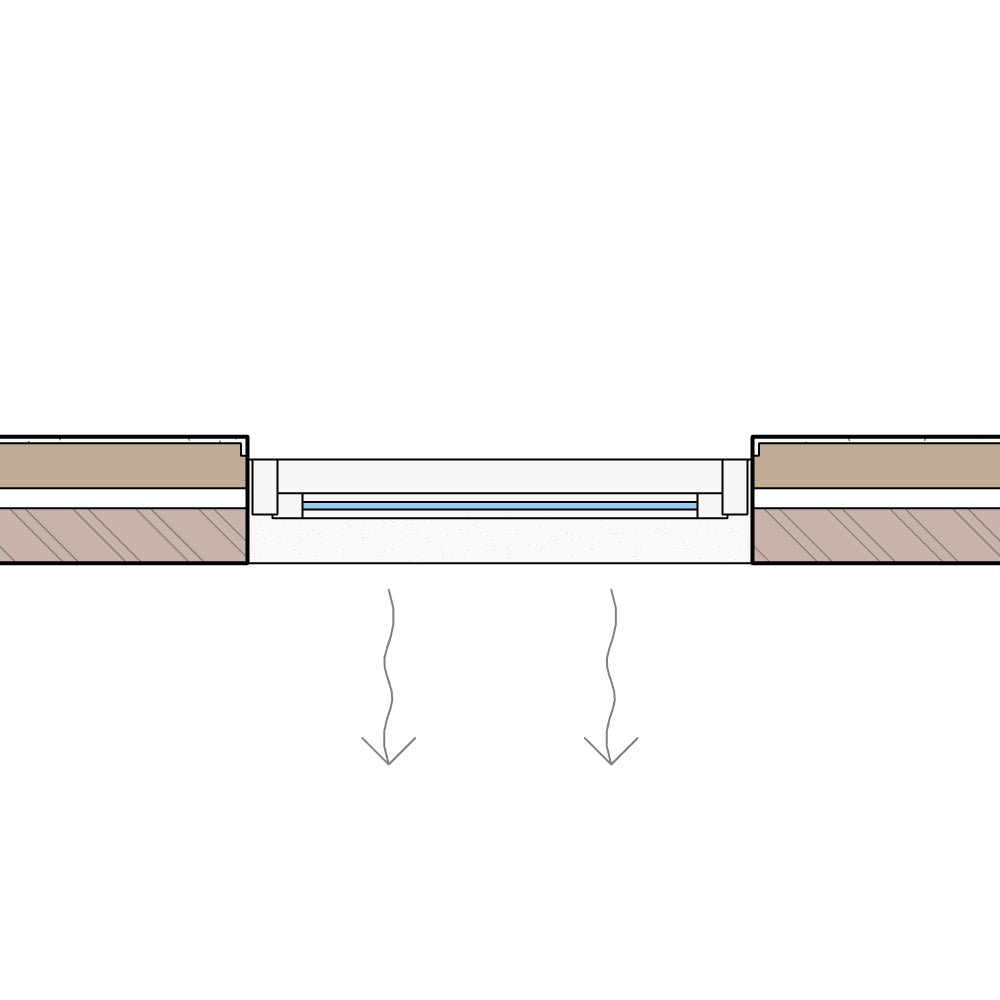

EASILY ENABLED VENTILATION GRILL

  • Enable ventilation grills in any of our windows with the click of a button.

  • Optionally visualise air intake or exhaust in section...

  • ...or in your reflected ceiling plans.

SWAPPABLE

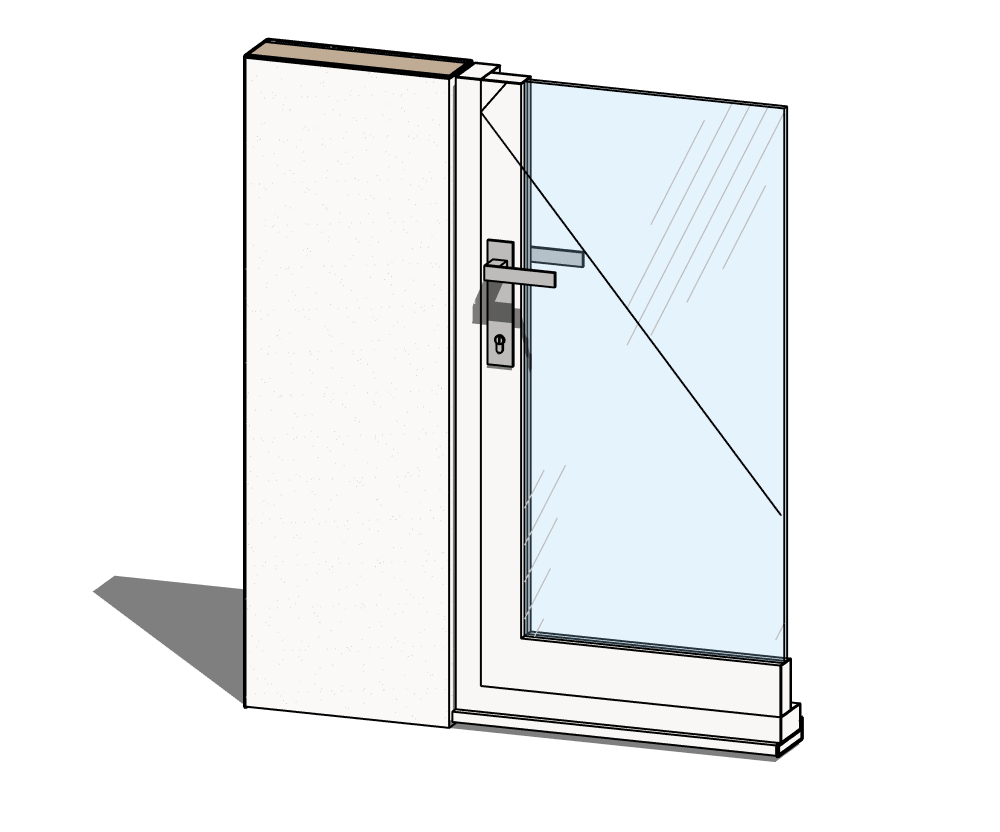

CUSTOMISABLE HANDLES AND LOCKS

Our windows come pre-packed with modern handles and locks that are easily swapped in and out.

As a bonus, these are even compatible with any of our internal door families at BIMcraftHQ, giving you ease of use and consistency of appearance throughout your project

Check out the many free compatible hardware models available for download in our samples section.

OVERLOOKING CONSIDERATE

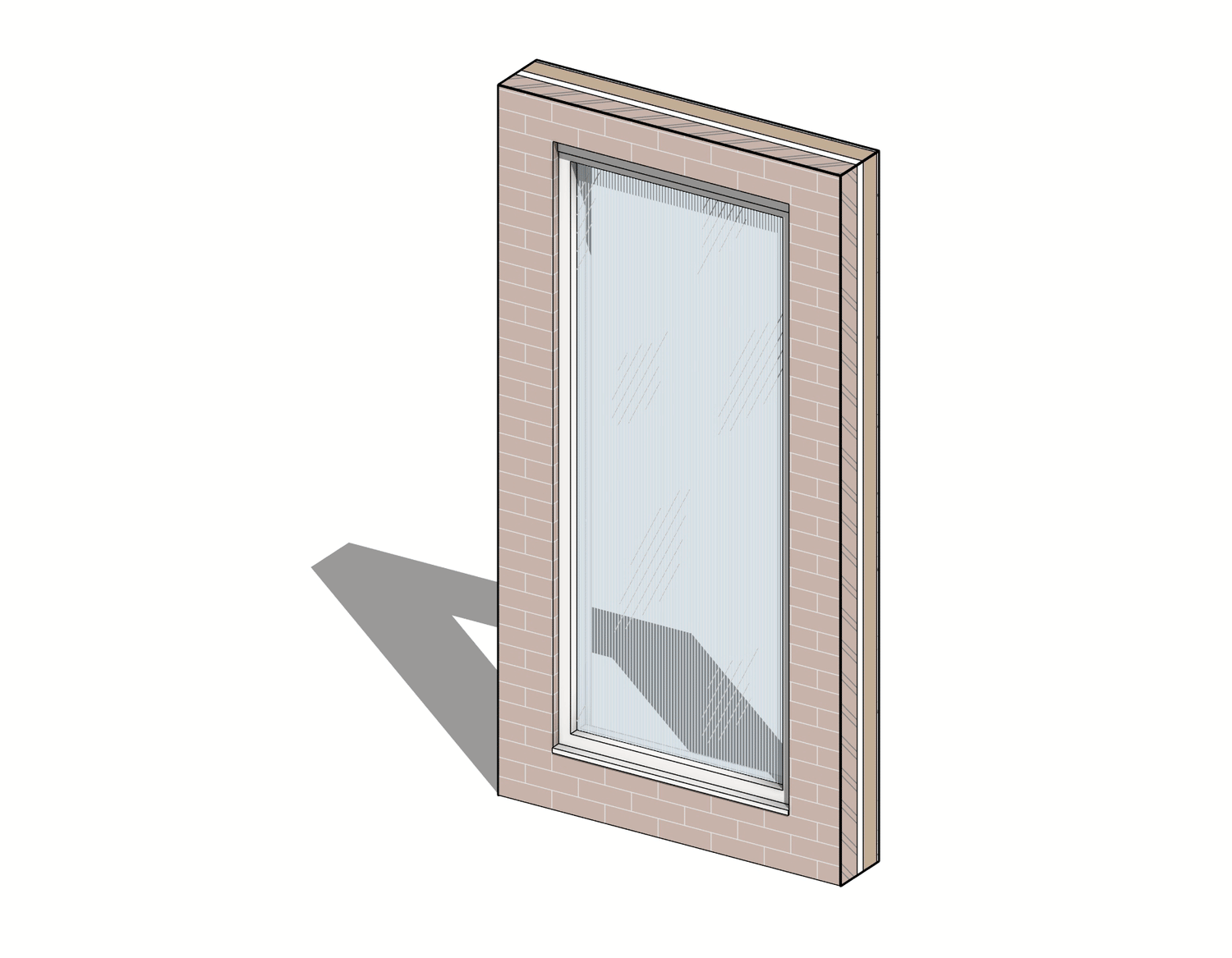

ADJUSTABLE OBSCURED GLAZING

All BIMcraftHQ windows have adjustable obscured glazing heights and material properties, even working across multiple panels.

STATUTORY READY

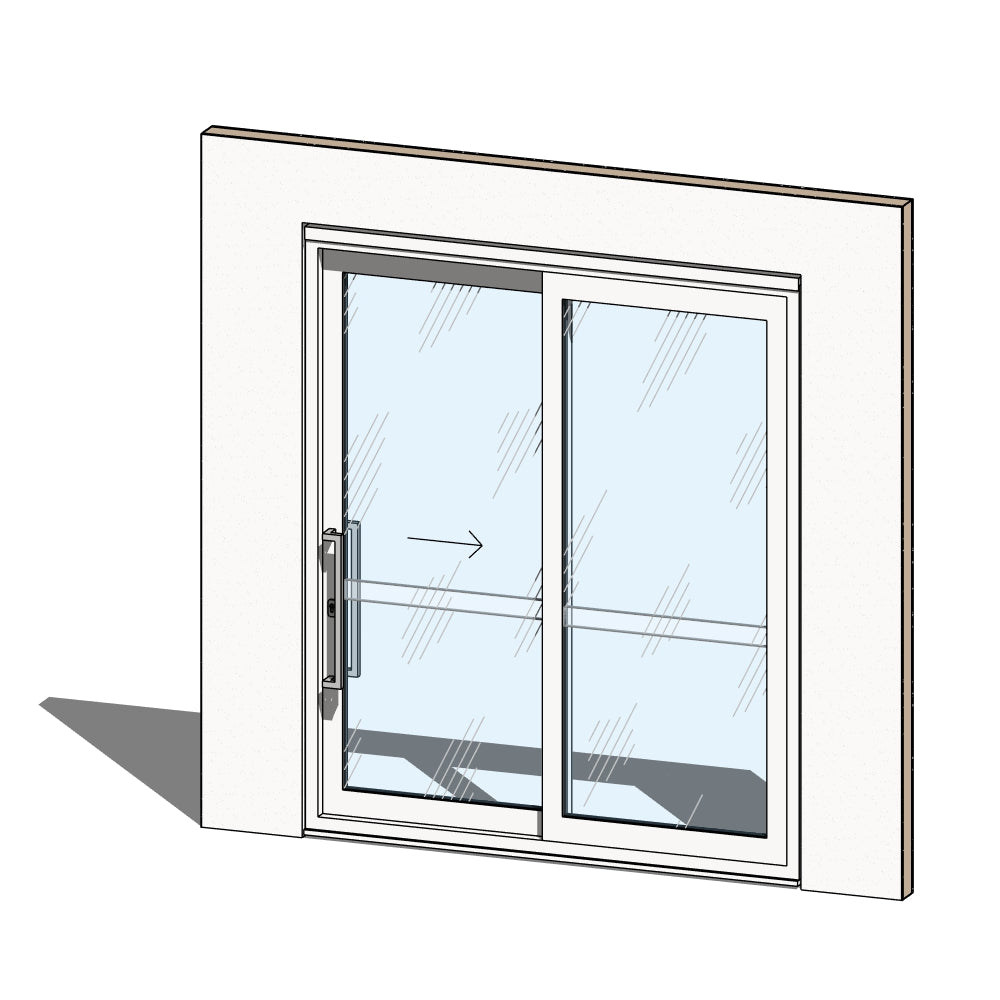

OPTIONAL WINDOW SAFETY DECAL

With the click of a button enable a safety decal and set its size and height to comply with your local requirements. You can even go to the extent of setting its material for your realistic renders.

INTEGRATED

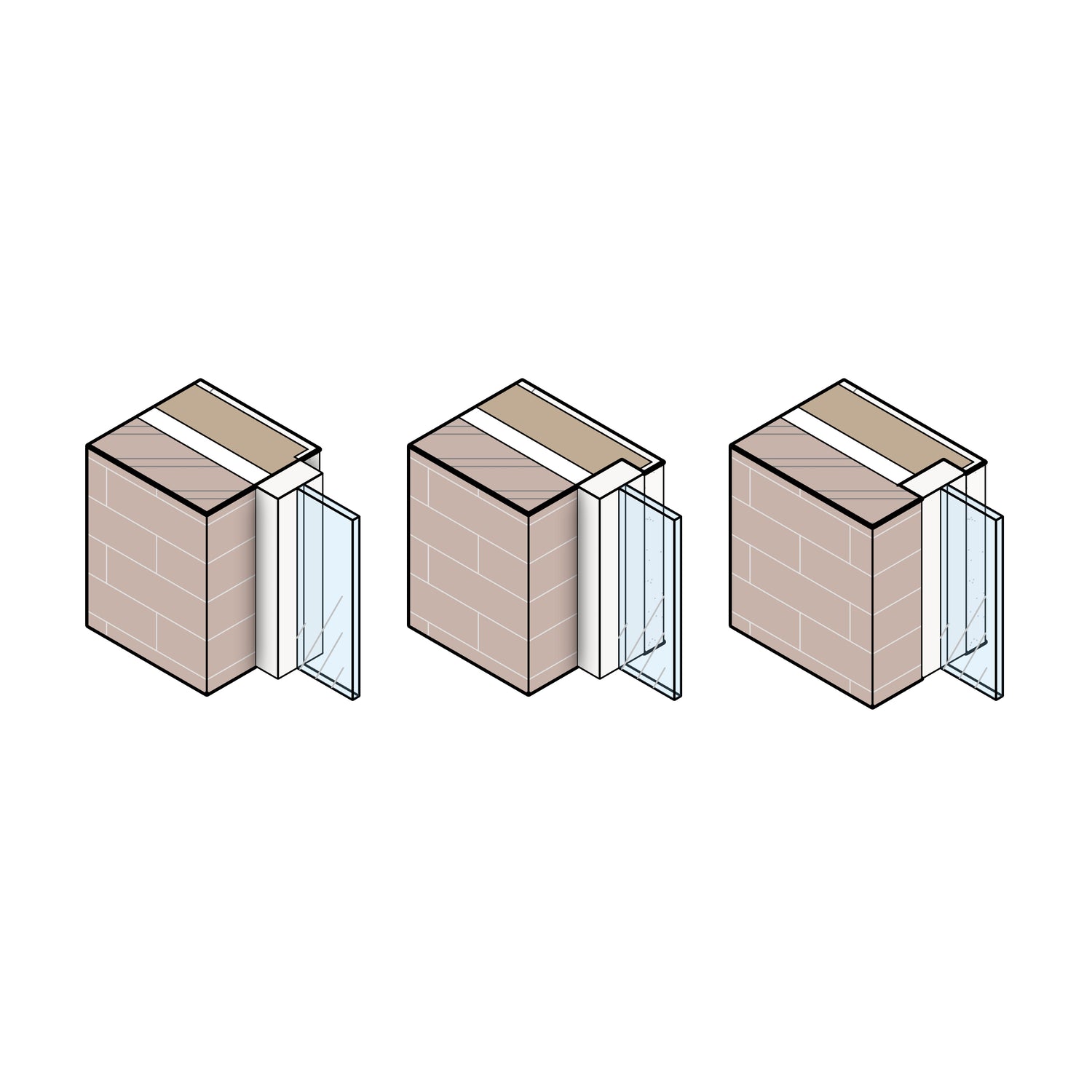

​HIGHLY ADJUSTABLE FRAMES & WALL WRAPPING OFFSETS

​All BIMcraftHQ window families feature highly adjustable frames, while also allowing custom wall layer wrapping offsets. This enables the interior and exterior wall layers to be independently set to overlap the window frame the exact amount you need.

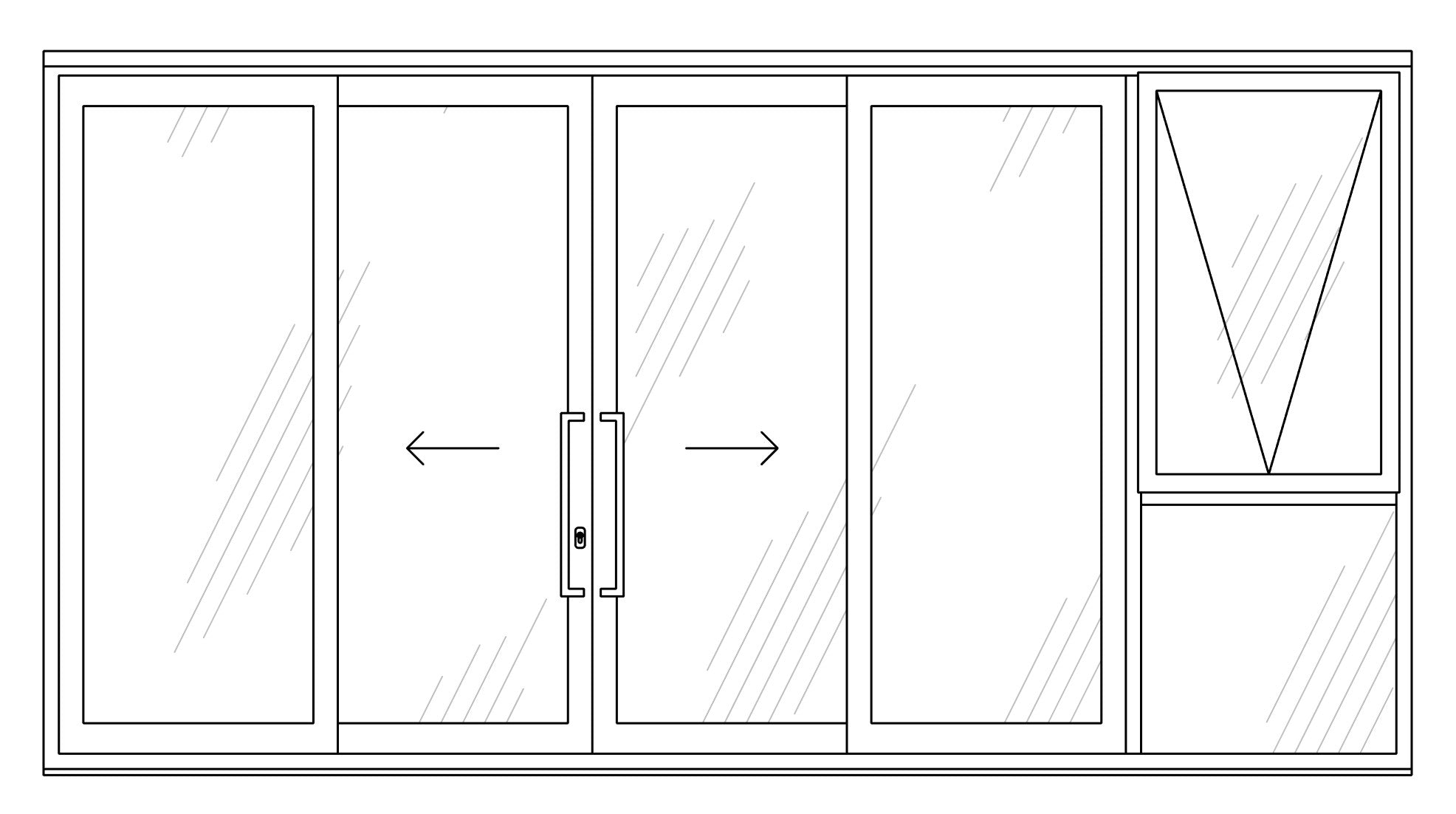

  • ADAPTABLE SYMBOLIC LINE WORK

    Symbolic lines work such as swing lines work correctly, no matter what customisations you apply. Additionally, all line work has been assigned to the correct object styles, allowing quick adjustment of the line type or adoption of your current template settings.

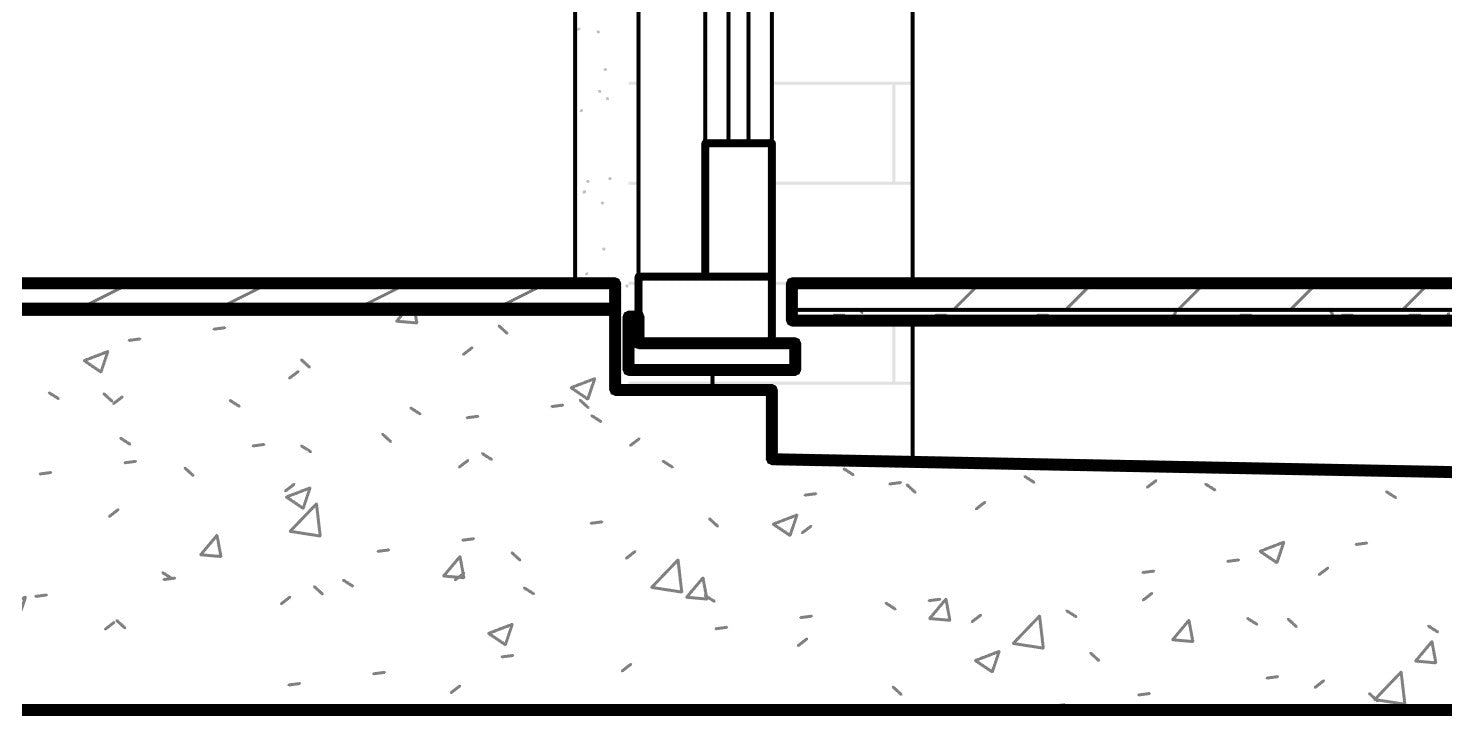

  • RECESSED SILL FOR FLUSH TRANSITIONS

    Are you trying to achieve a flush finish between your floor and sill frame? All our windows have the ability to enable a slab sill void. Simply use the cut tool between the window and slab to make your sections and details shine.

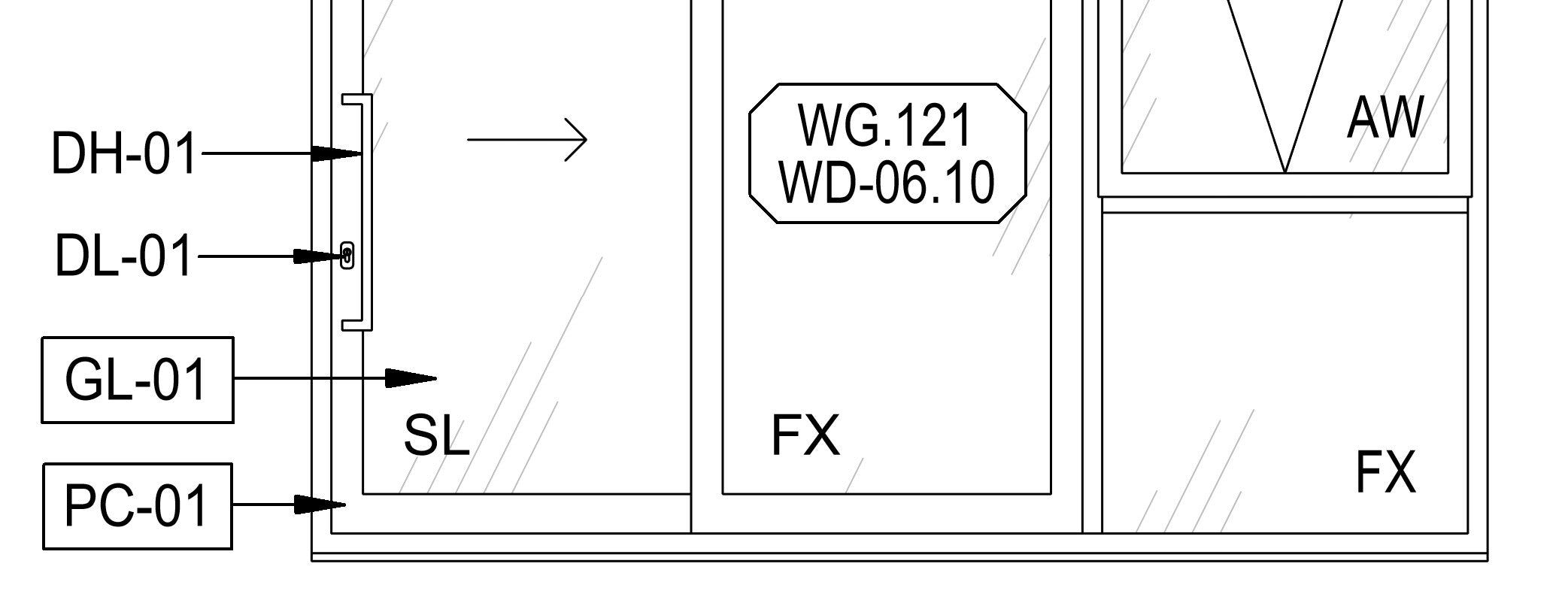

  • FLEXIBLE TAGGING OPTIONS

    ​If your work flow involves tagging hardware in view rather than through a schedule, the shared and nested nature of the door handles and locks, makes tagging them separately a breeze.

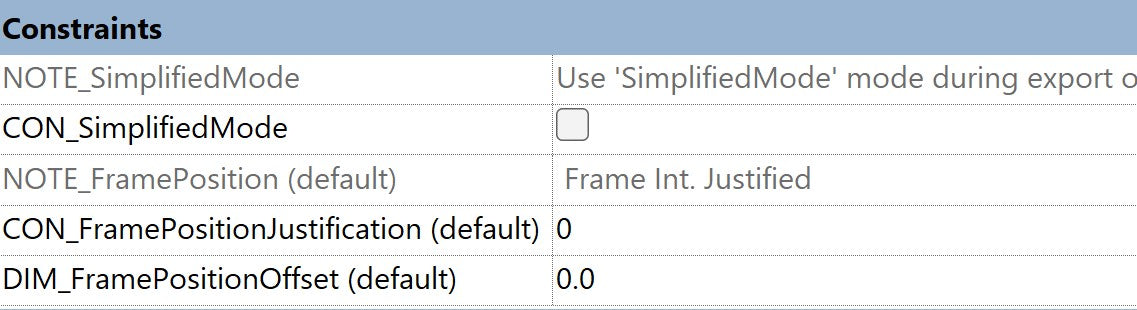

  • USABILITY AND MODEL DEVELOPMENT CONSIDERATION

    ​All BIMcraftHQ windows are built around usability and the architectural work flow. Their use has been considered from Concept Design to Construction Documentation and include features to facilitate this progression.

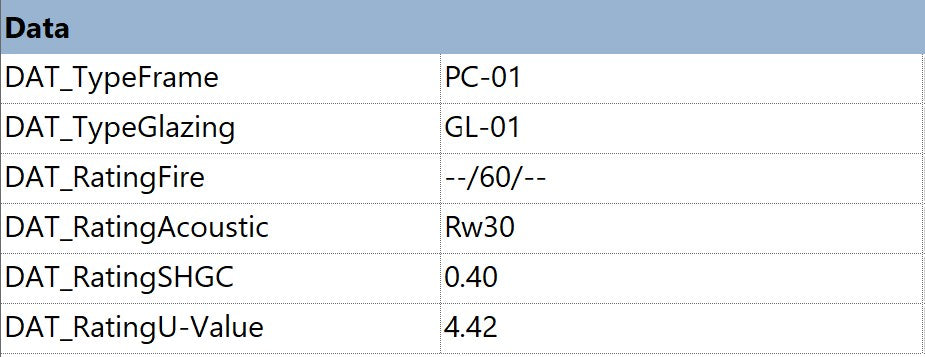

  • SCHEDULE READY

    BIMcraftHQ window families are ready with shared parameters specific for window scheduling, including commonly required fields such as frame and glazing type, thermal, acoustic, and fire ratings, and sprinkler, smoke seal, and opening restrictor protection requirements.

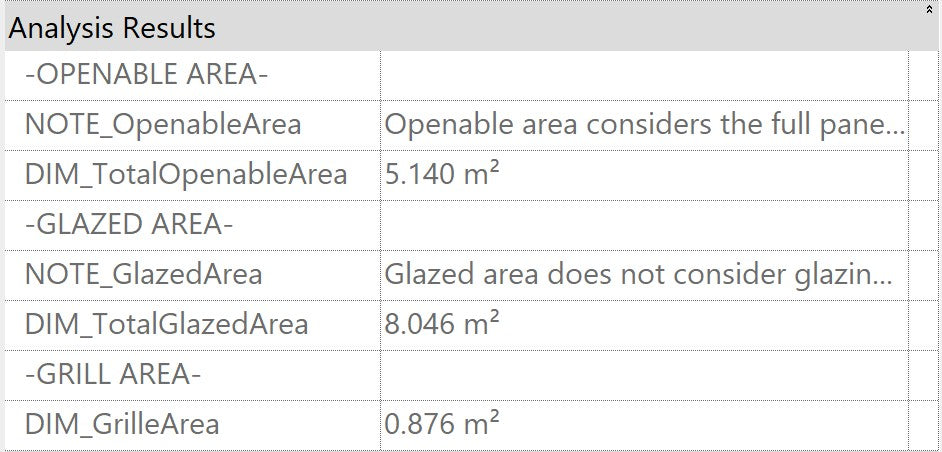

  • OPENABLE AND GLAZED, AND GRILL AREA CALCULATIONS

    Test your windows against local planning requirements with with automated reporting of the Openable and Glazed Area in the instance properties of all our windows.
BIMcraftHQ - Container Set - Sample Window

Not Convinced...

Try our sample window family. It has reduced window types and features, but still packs a punch and provides a comprehensive preview into the functionality of our larger window range.

GET THE SAMPLE

BIMcraftHQ families are made to facilitate an efficient process of architectural design and documentation. We are constantly adding to and improving our database, so if you have an idea for a family or suggested feature you would like to see, please contact us!
