Modern Basin Bottle Trap

Modern Basin Bottle Trap

Regular price $3.00 AUD
Regular price Sale price $3.00 AUD
Sale Sold out
  • Revit Version 2020
  • Family Version 1.1

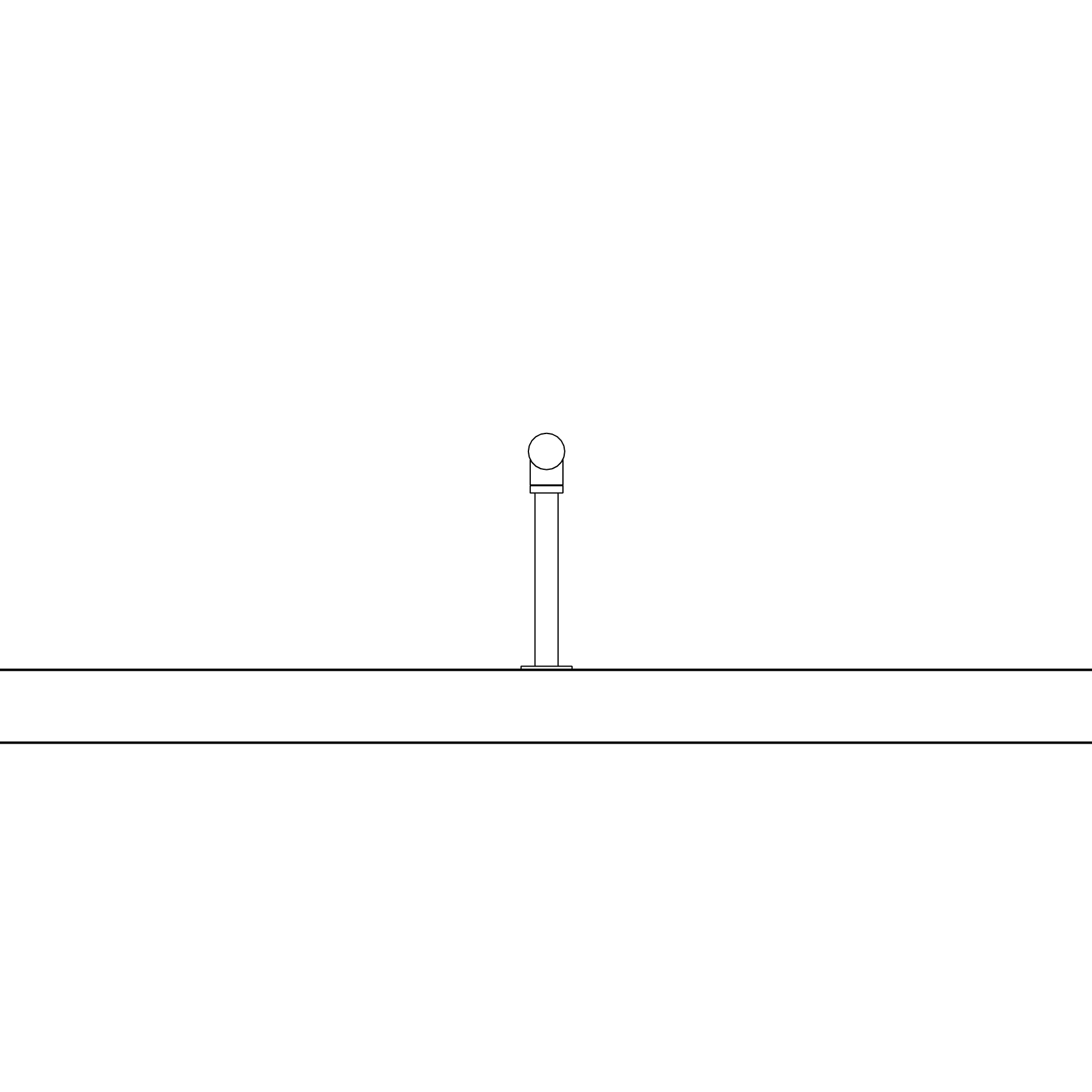

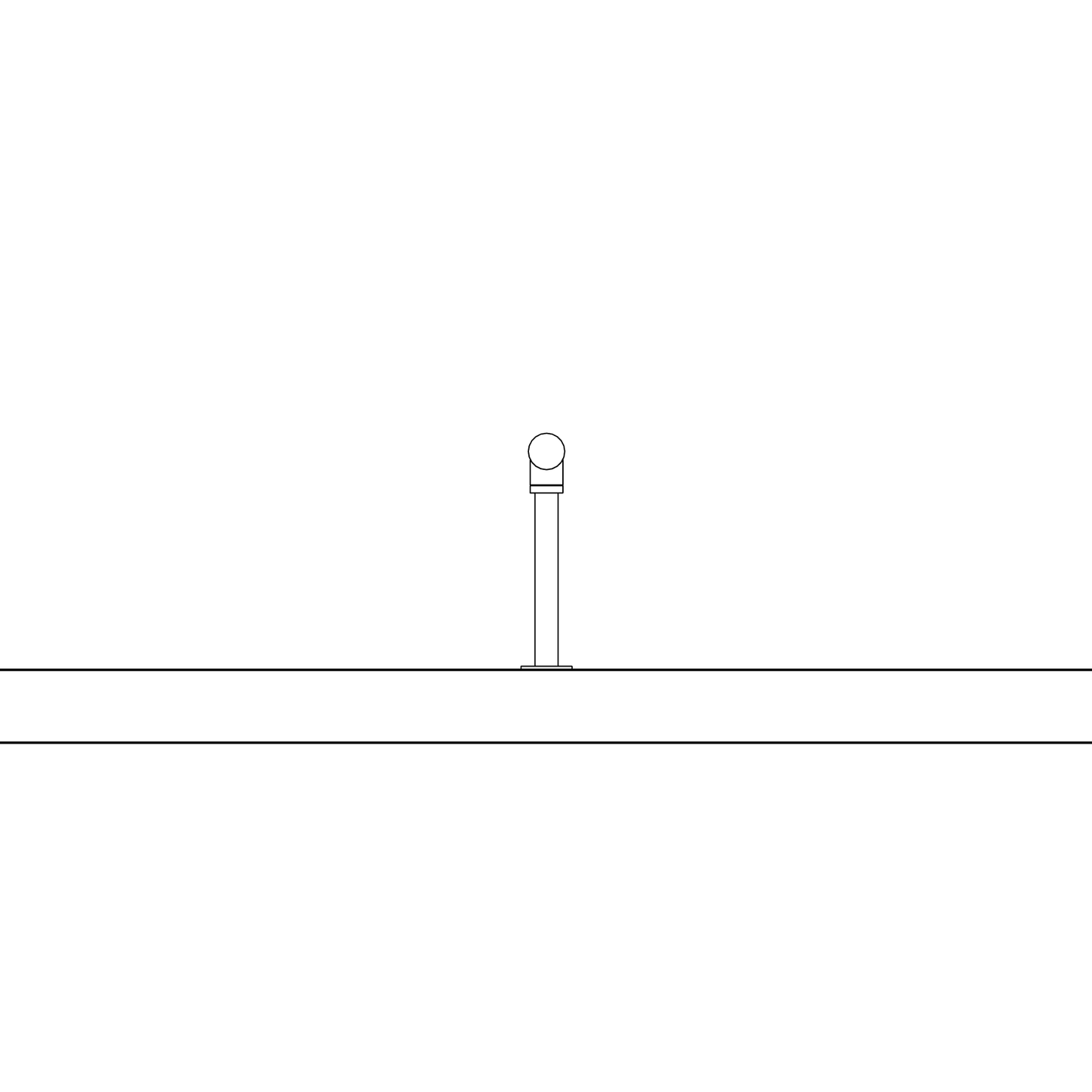

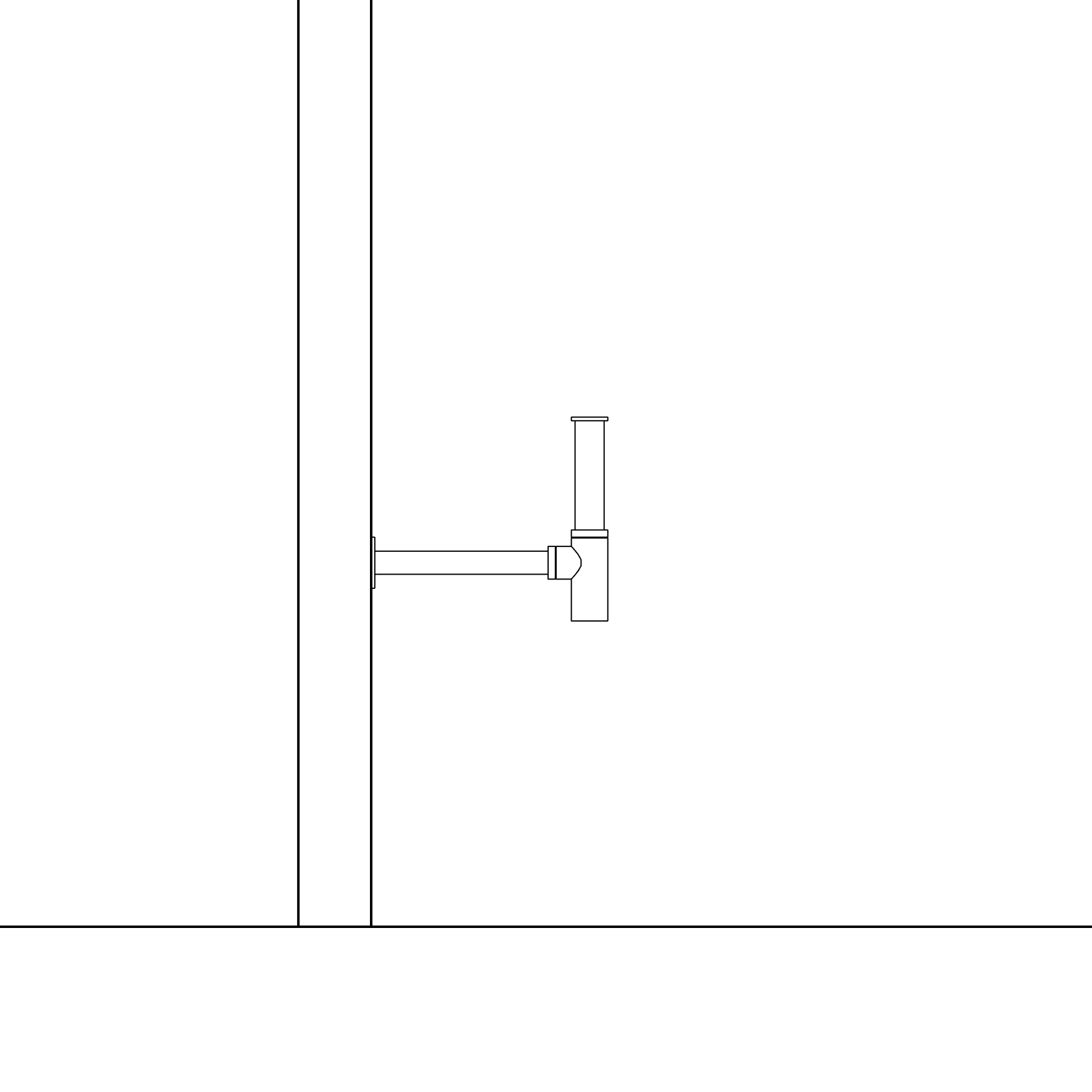

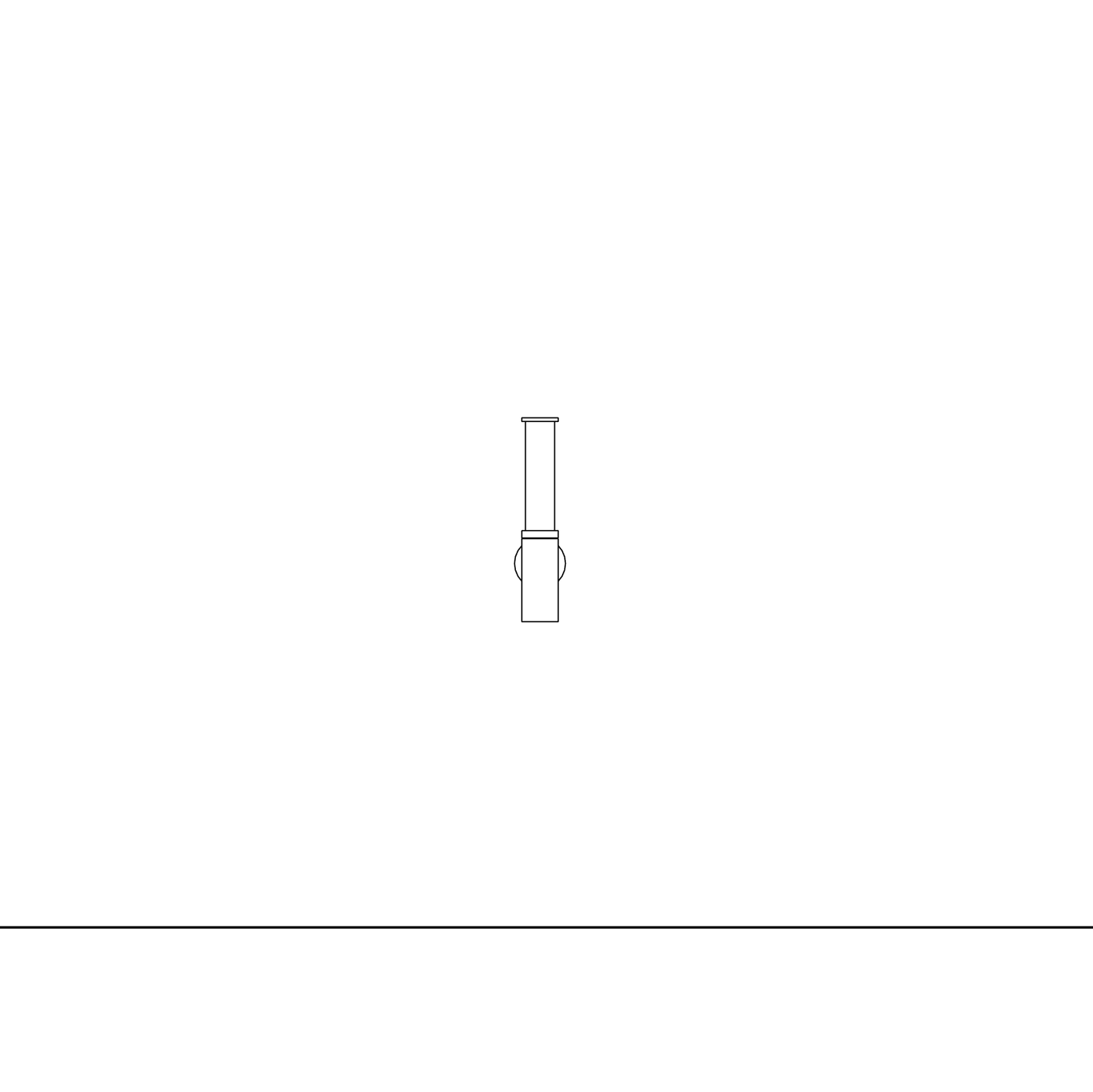

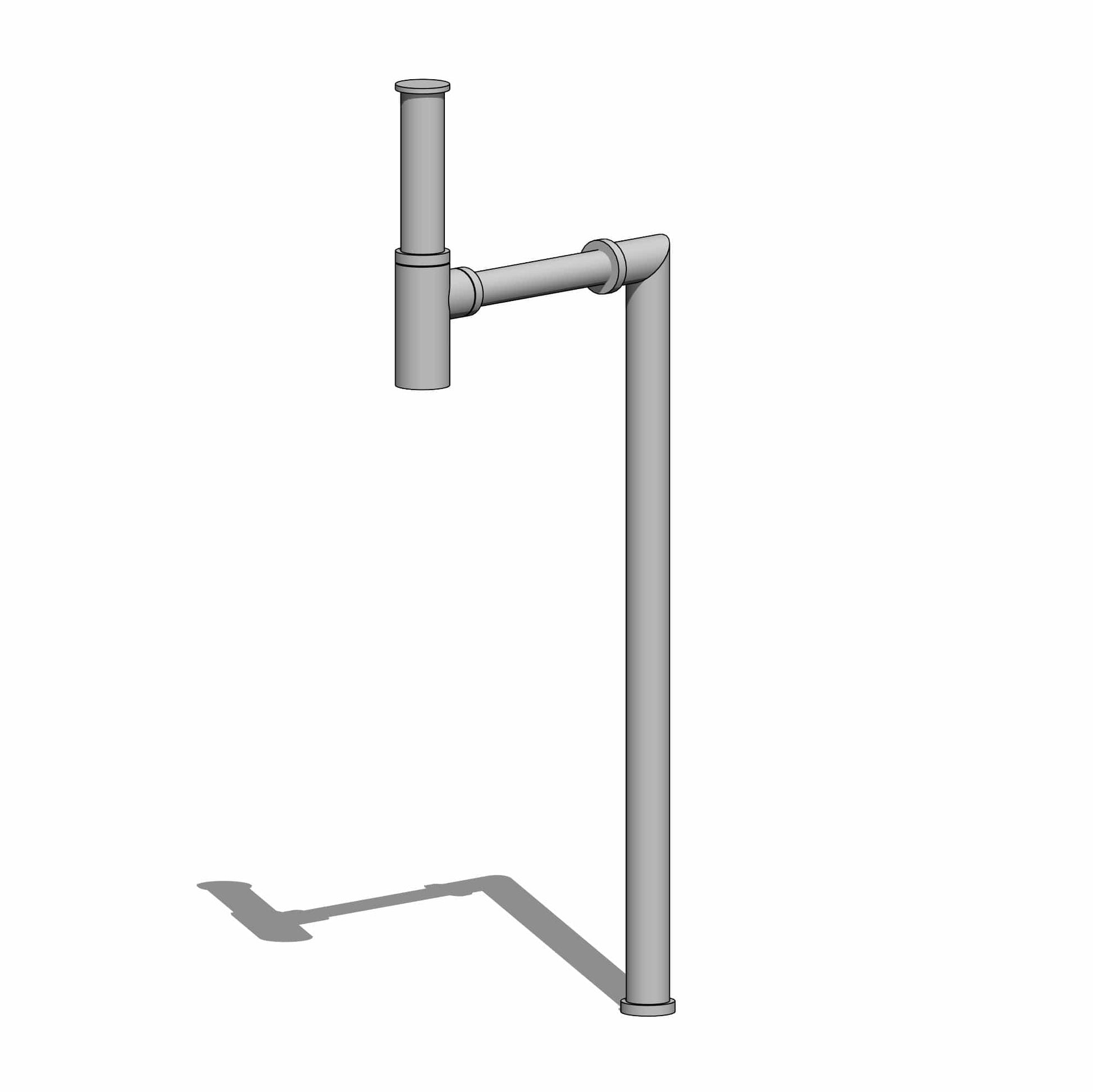

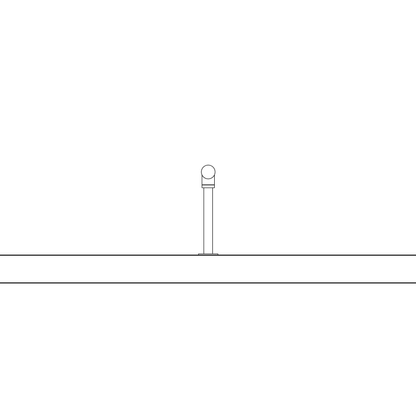

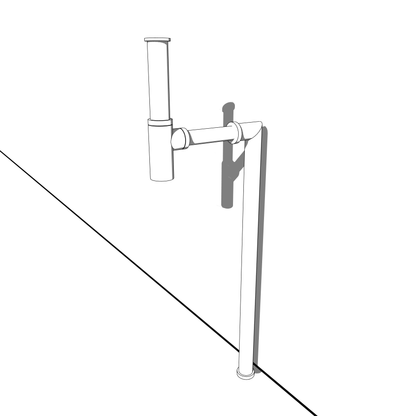

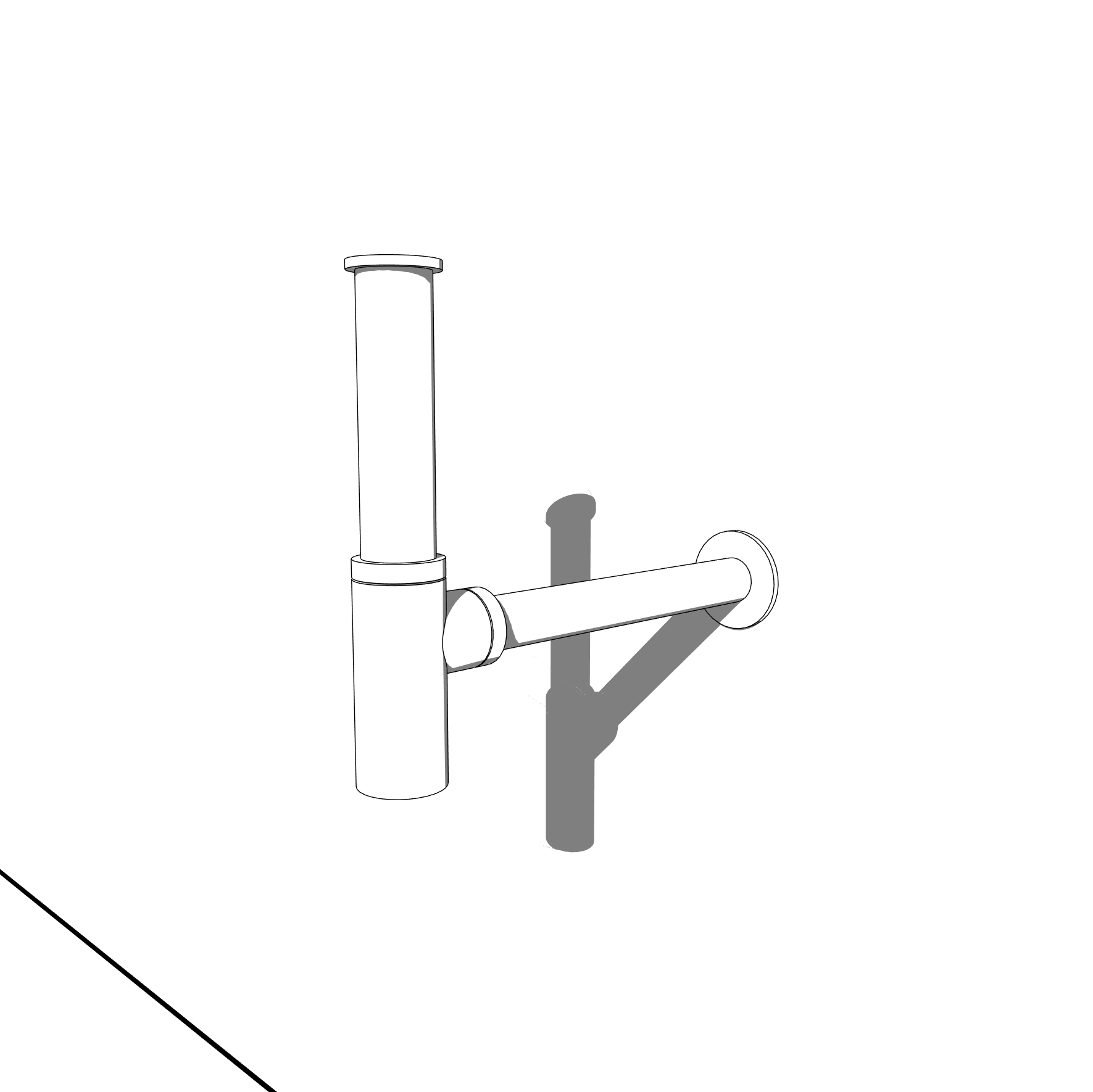

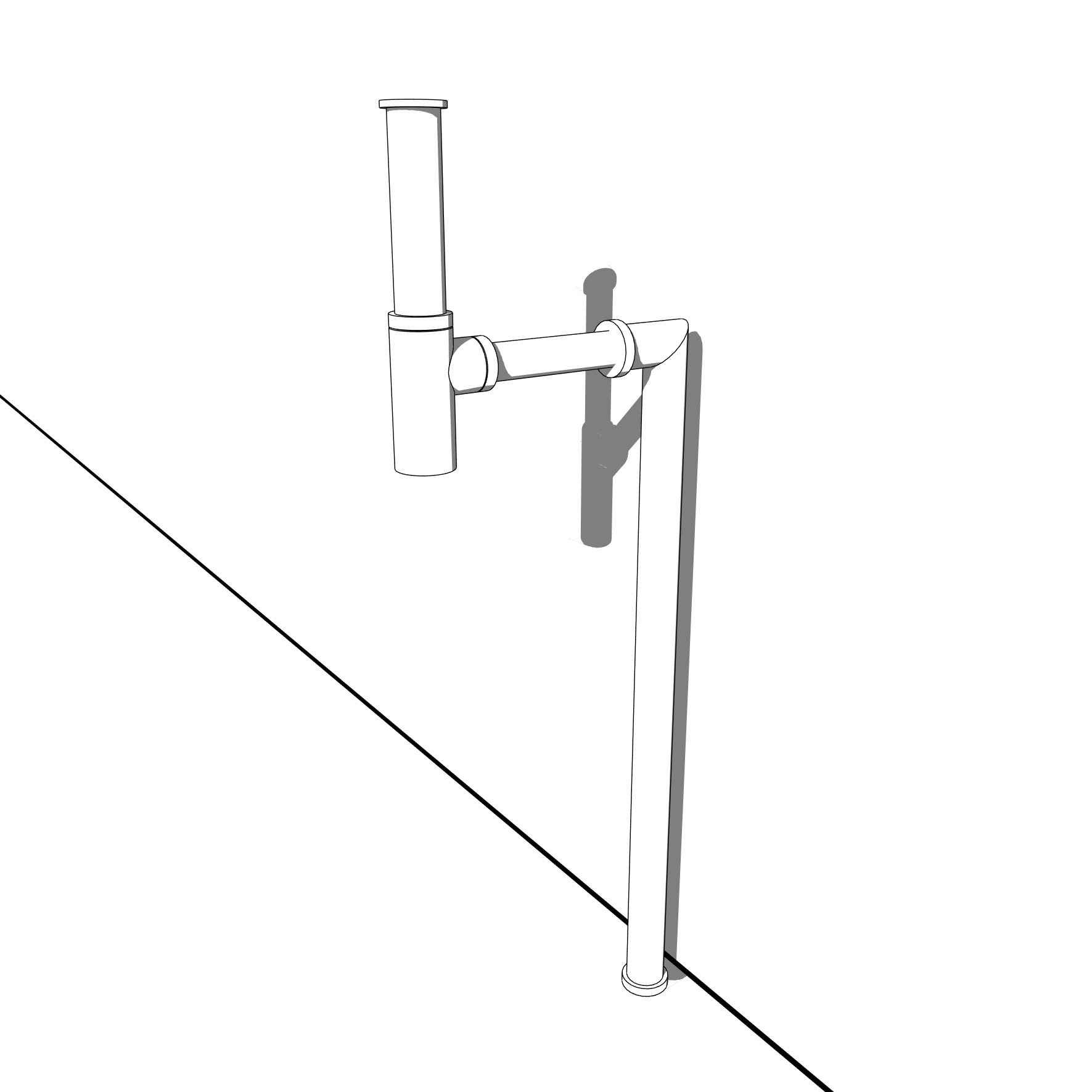

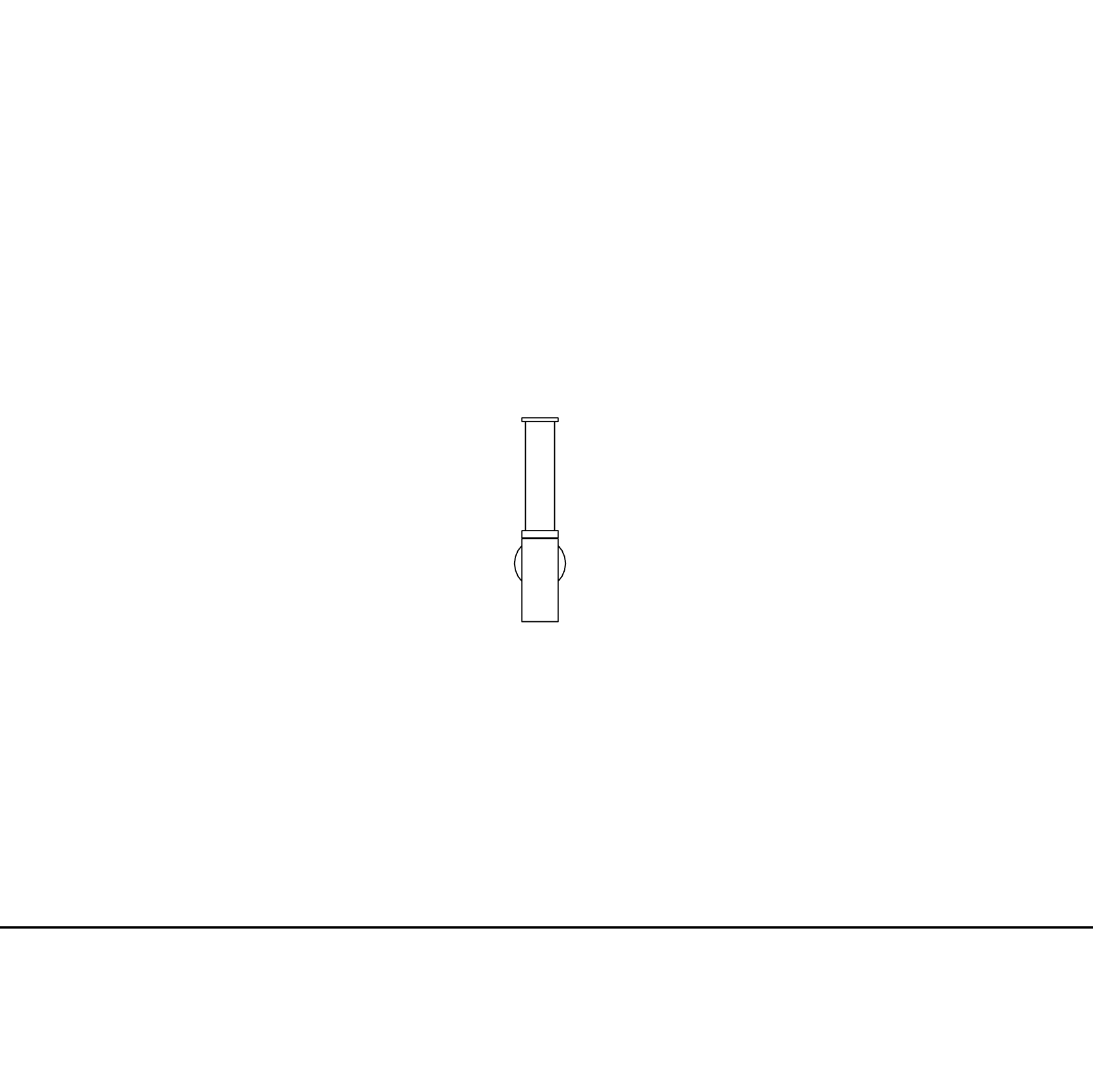

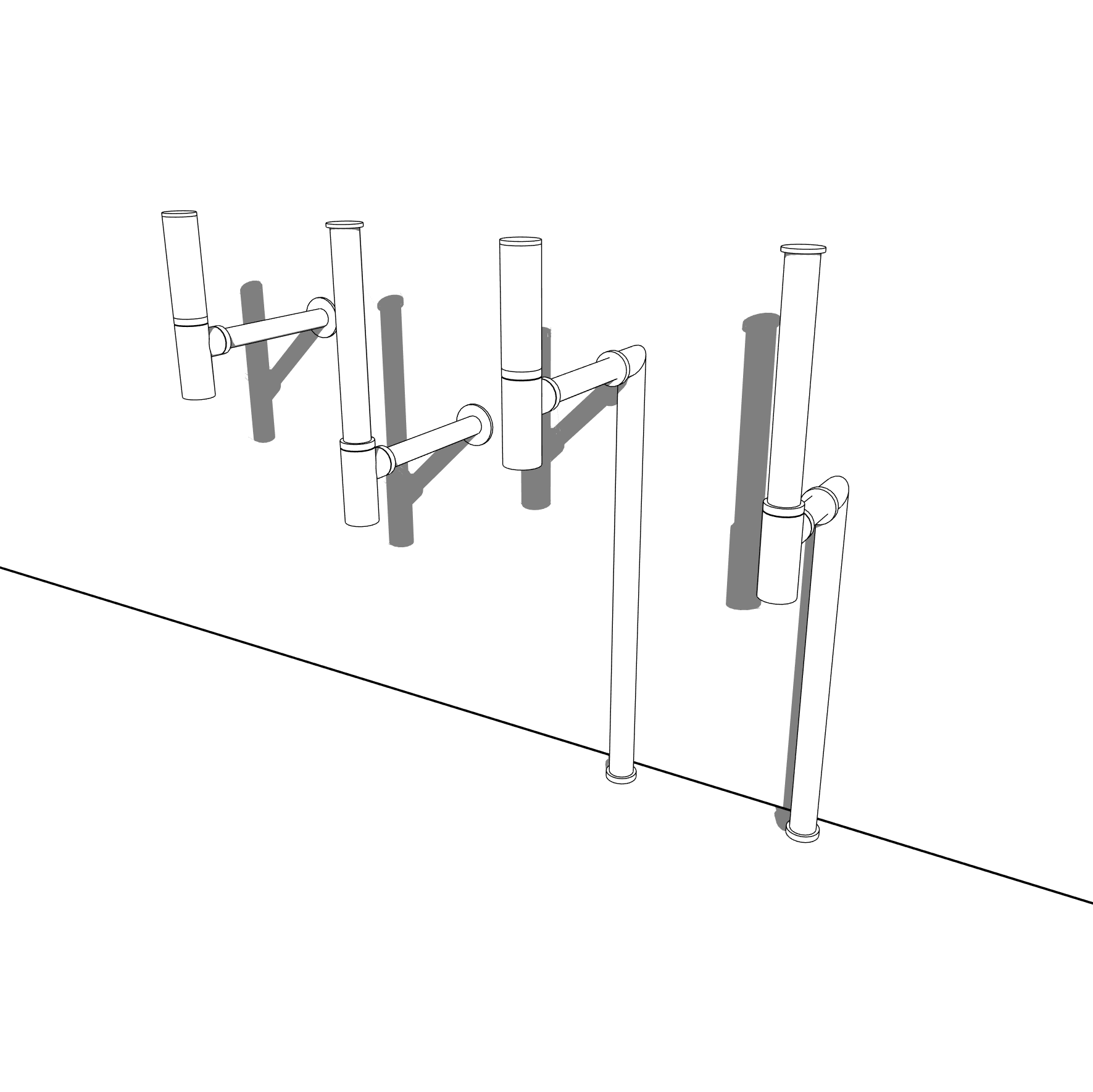

A Modern Basin Bottle Trap capable of being switched between S-Trap and P-Trap connections with an optional trap cover. It has adjustable horizontal and vertical extents with minimum safeguards to prevent accidental breaking.

The Modern Basin Bottle Trap can be used on its own within your models, but also works perfectly as an interchangeable nested family in our compatible families below. To learn more about nested families refer to the blog links below.


Properties

Family Type: Work Plane-Based

Family Category: Plumbing Fixtures

Custom Object Styles:

  • Pipework

Shared Family: Yes

PBR Texures: Yes


Version 1 Updates

Version 1.1

  • Updated family and shared parameters for integration with BIMcraftHQ project template.
  • Improved parameter naming and organising.
  • Updated textures to new PBR type with 1024x1024px texture maps.
