Louvered Ventilation Grill

Louvered Ventilation Grill

Regular price $8.00 AUD
Regular price Sale price $8.00 AUD
Sale Sold out
  • Revit Version 2018
  • Family Version 1.0

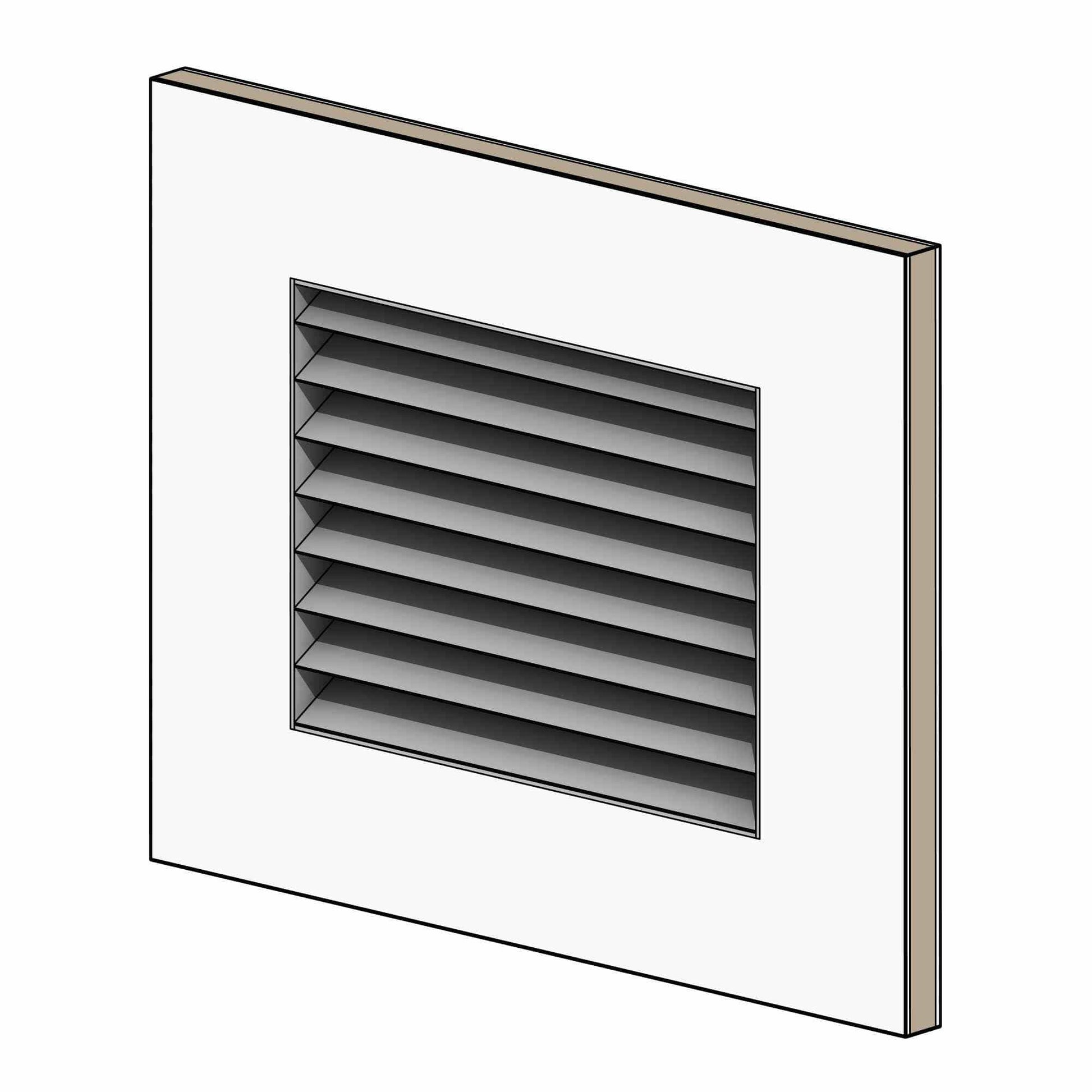

This Louvered Ventilation Grill family has been designed to be completely parametric in order to adjust for any louvre size, amount, spacing, and angle. It has built-in safeguards and the extremely handy feature of reporting the free area percentage. Taking the guesswork out of matching your louvres design to your MEP engineer free area percentage requests.

The Louvered Ventilation Grill family has also been built as face-based but with an unhosted version nested within, making it easy to extract the nested family and reuse it in any other hosted family types you might be creating.


Family Type: Face-Based

Family Category: Air Terminals

Custom Object Styles:

  • Louvers/Grills

Shared Family: No

PBR Texures: No
