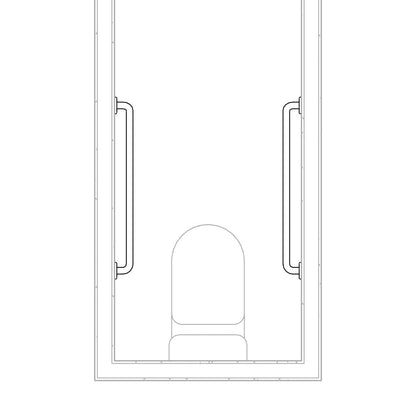

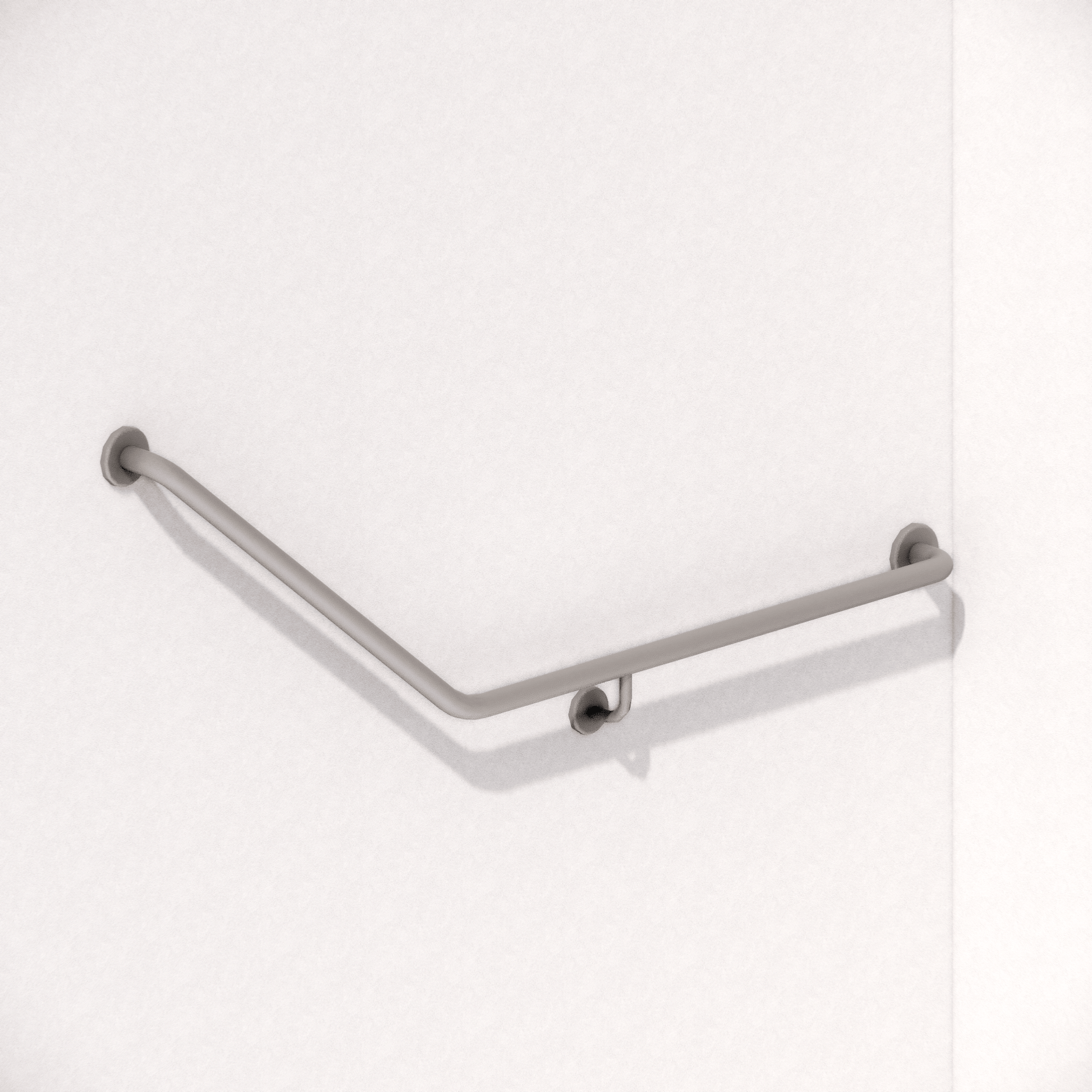

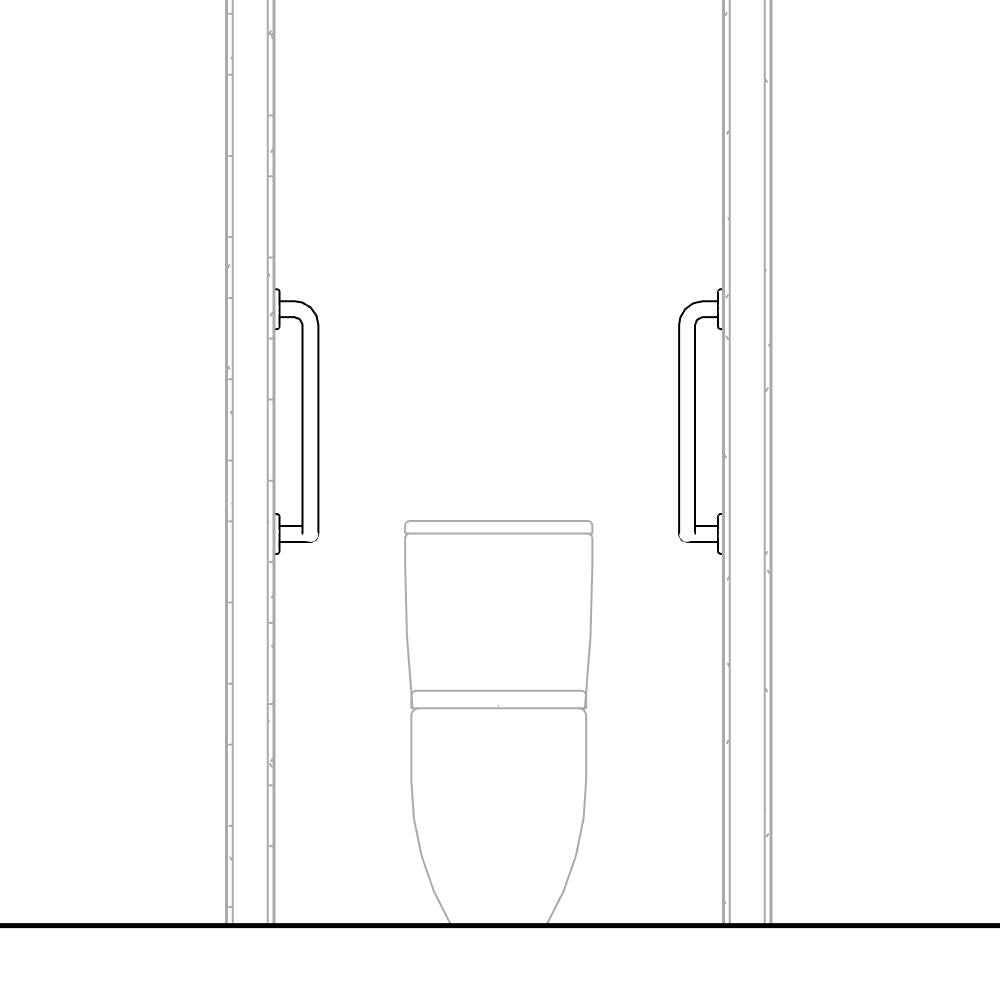

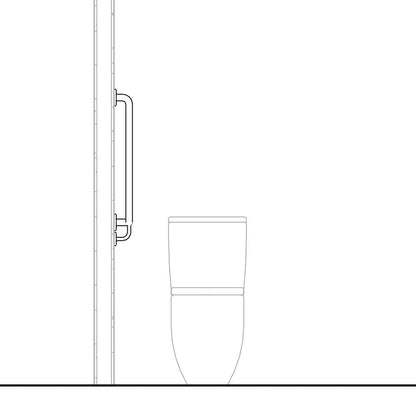

Angled Grab Rail

Angled Grab Rail

Regular price $5.00 AUD
Regular price Sale price $5.00 AUD
Sale Sold out
  • Revit Version 2020
  • Family Version 1.0

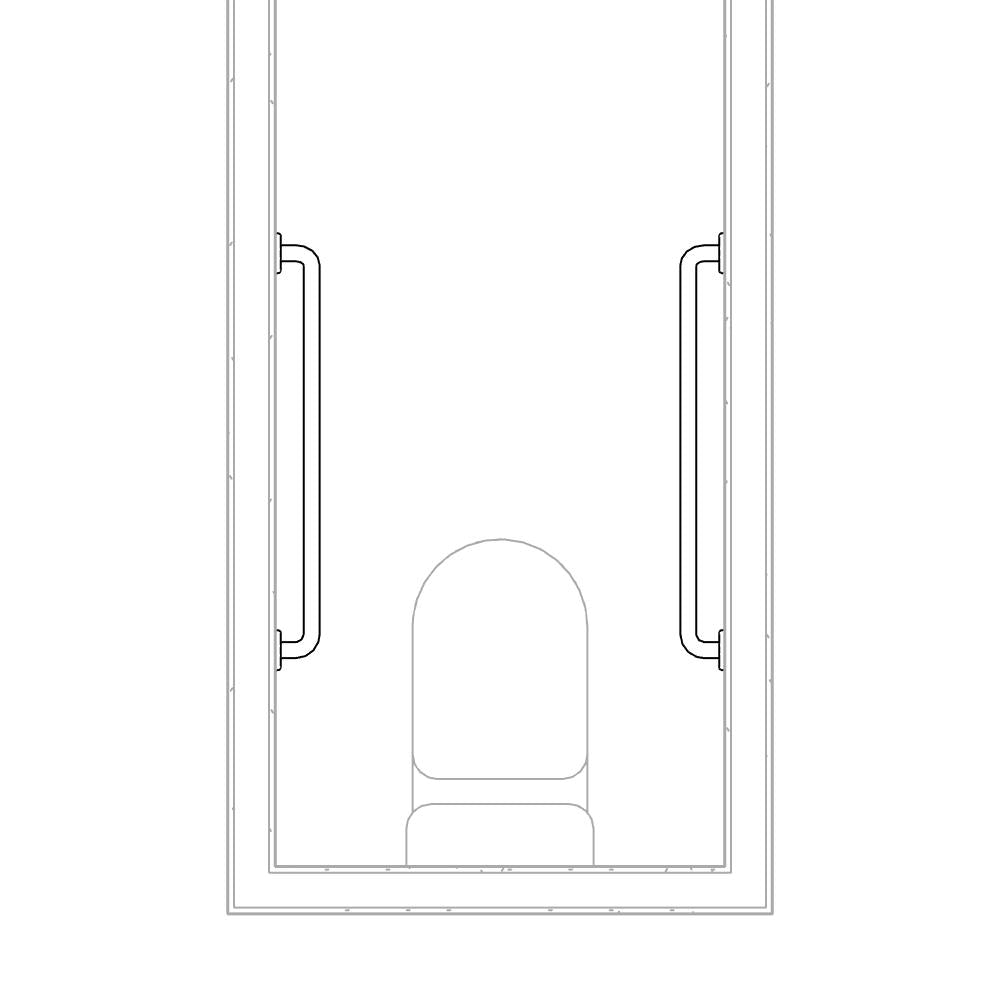

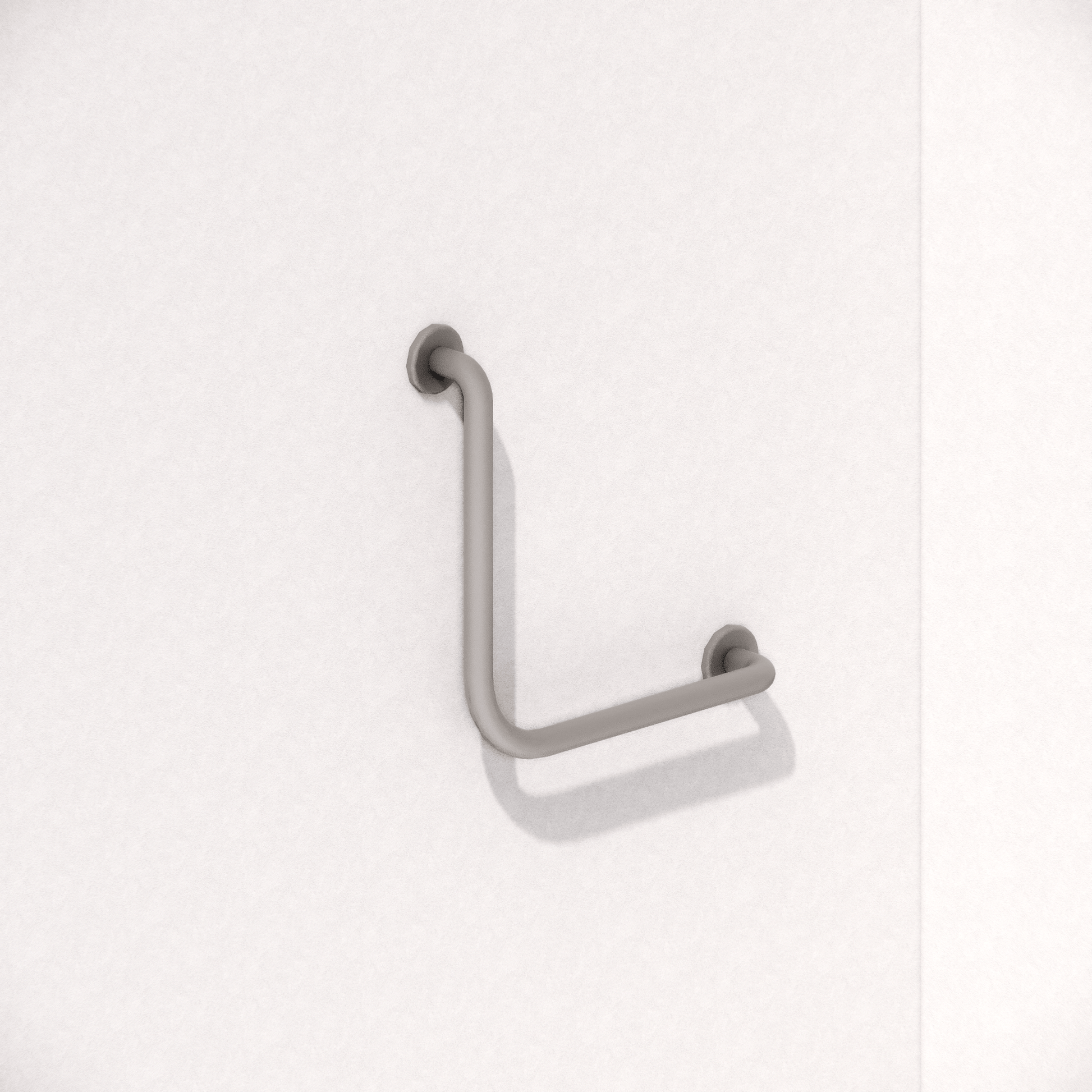

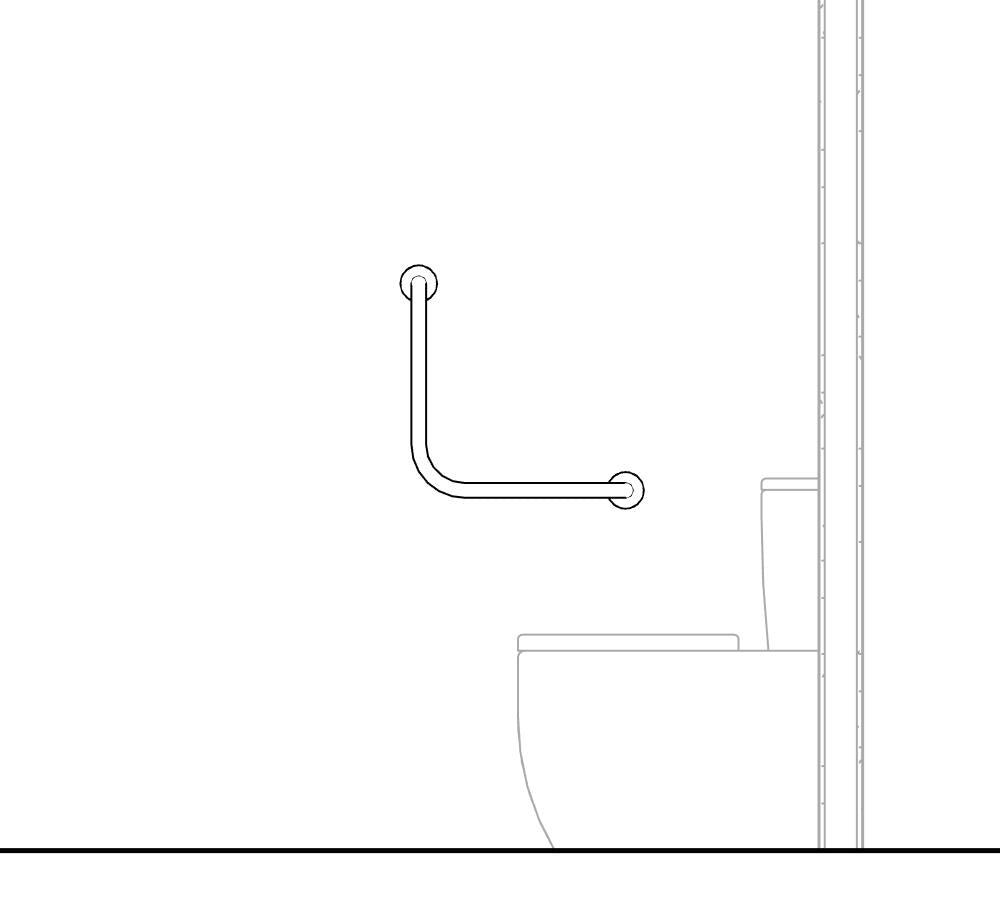

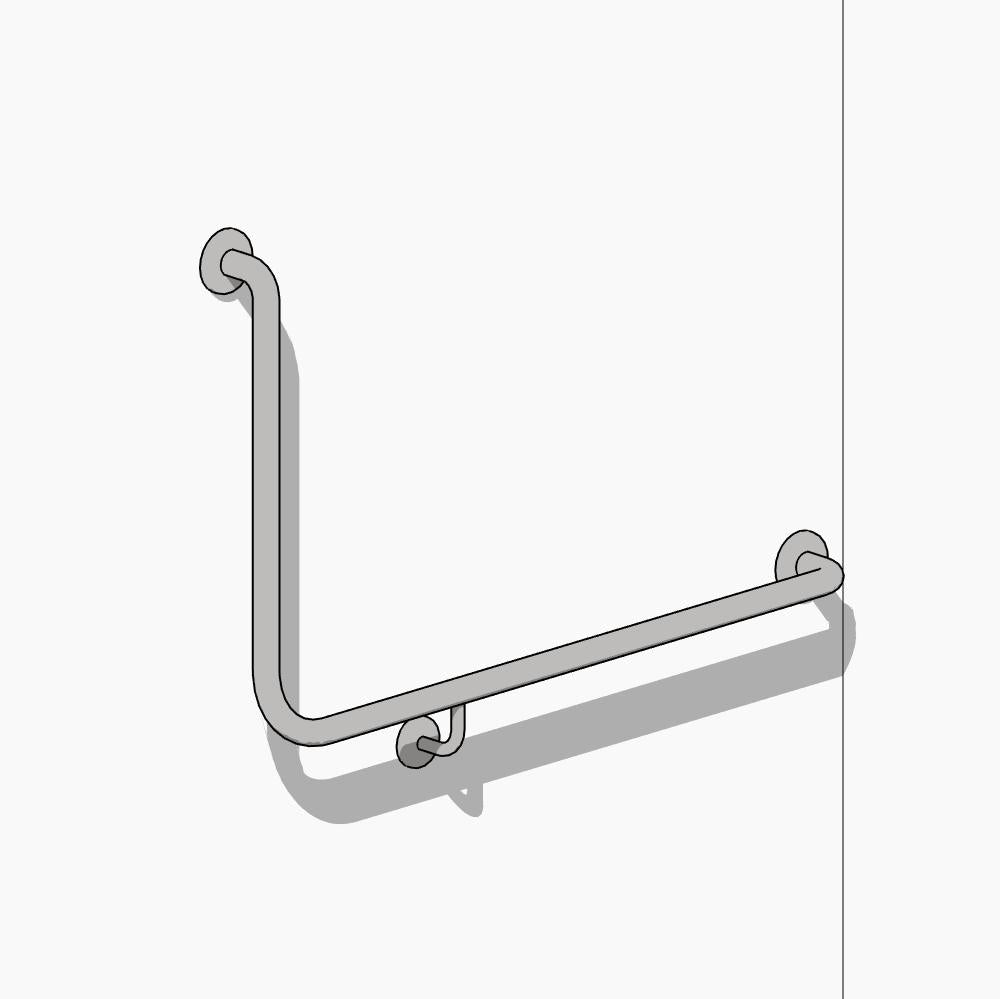

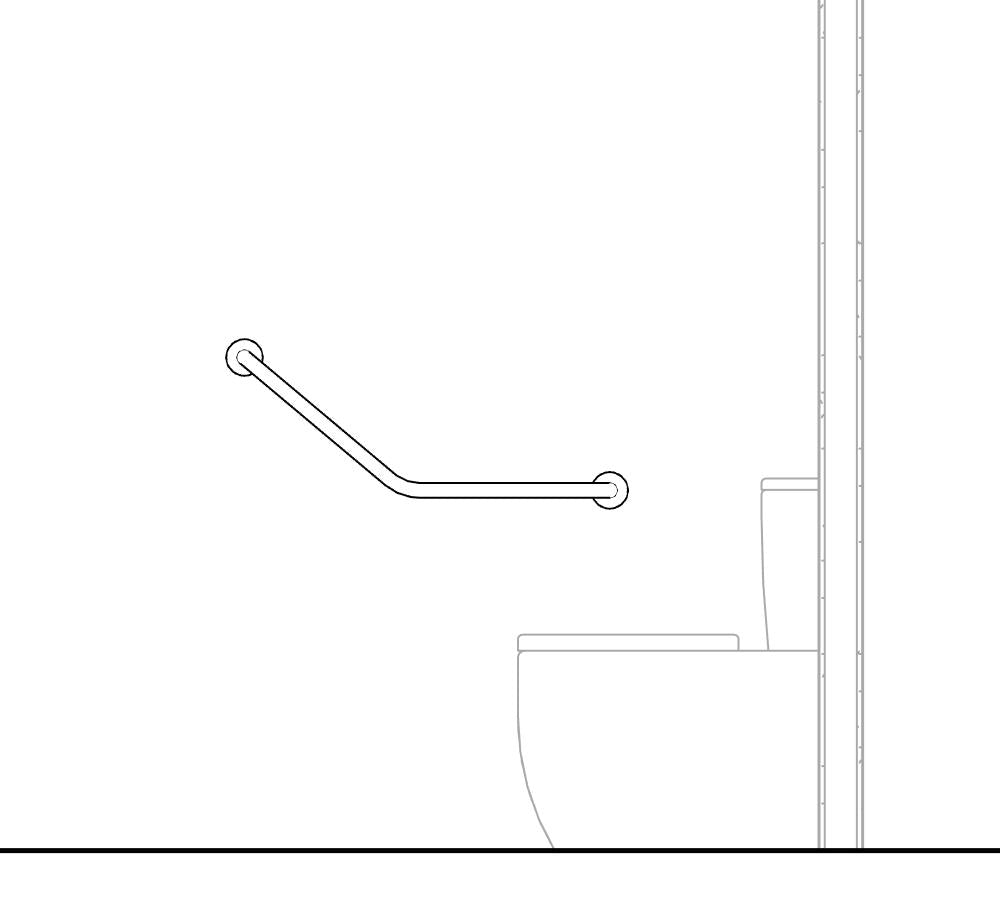

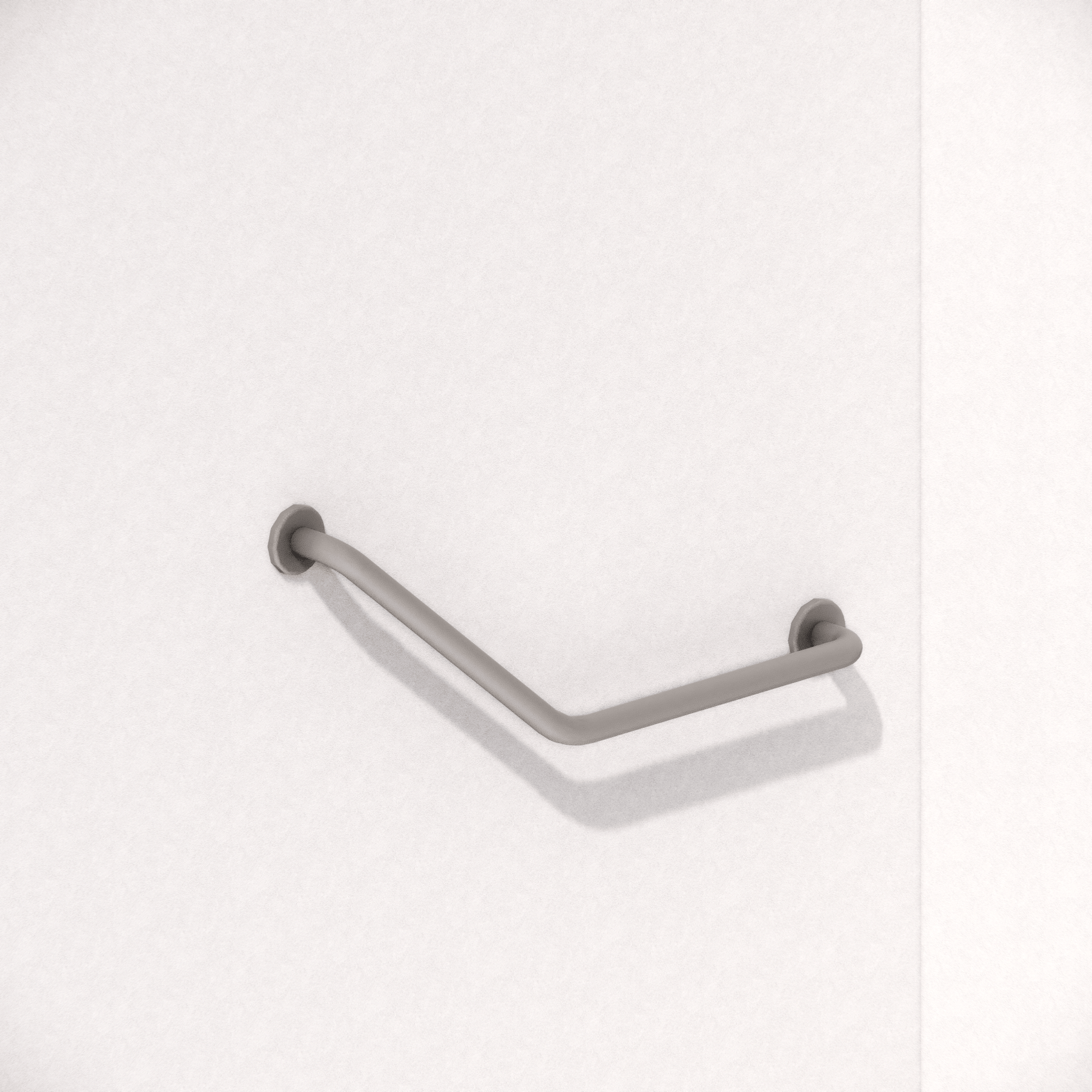

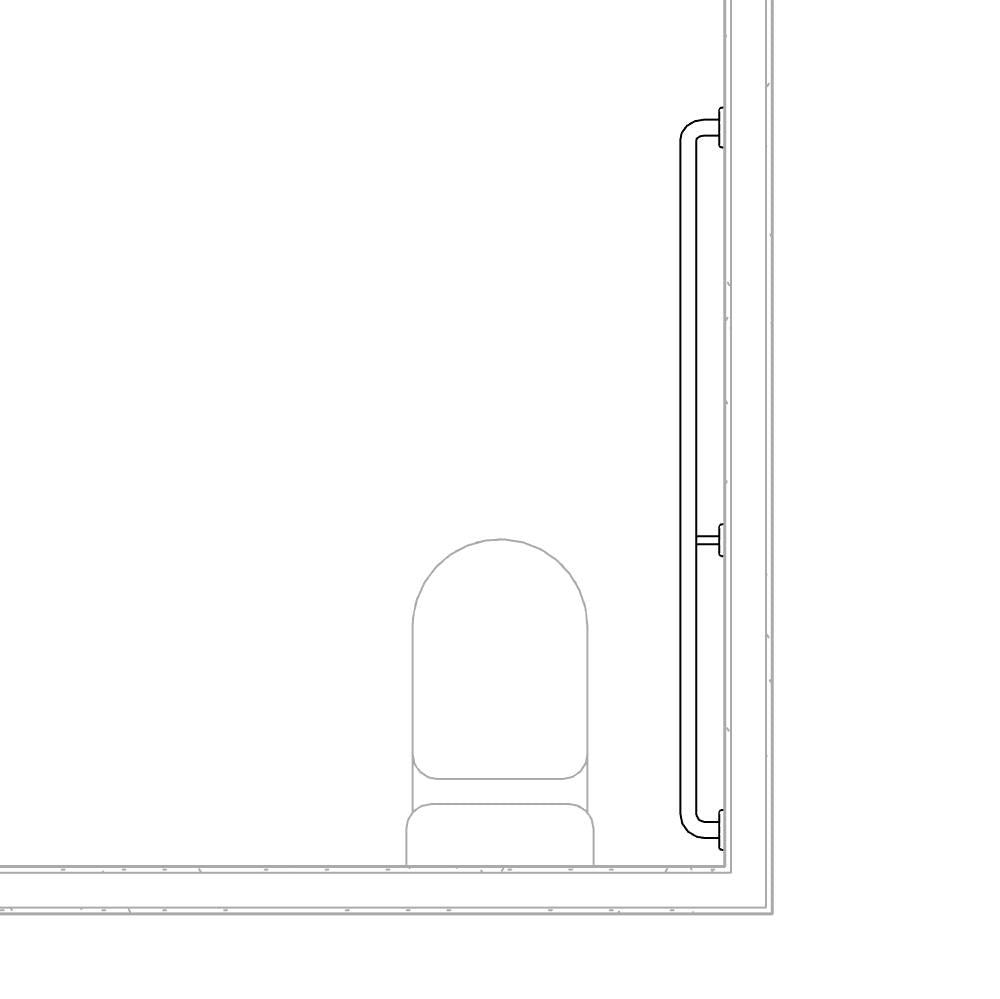

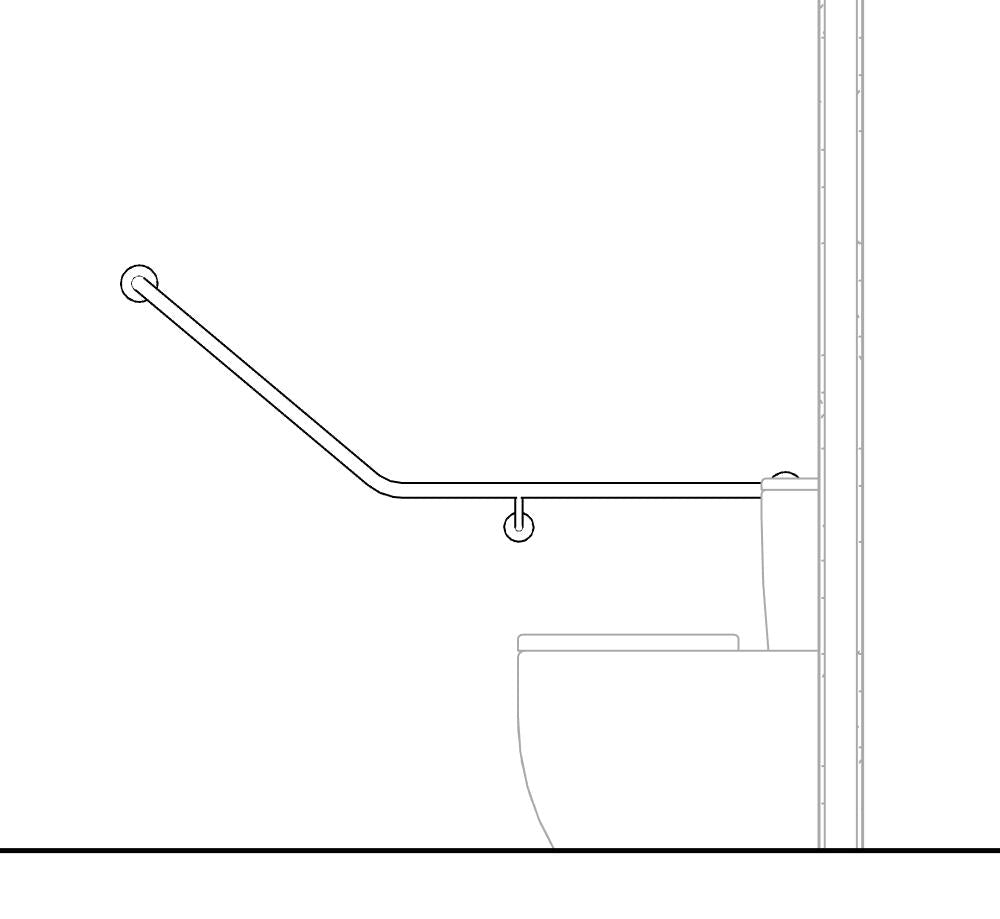

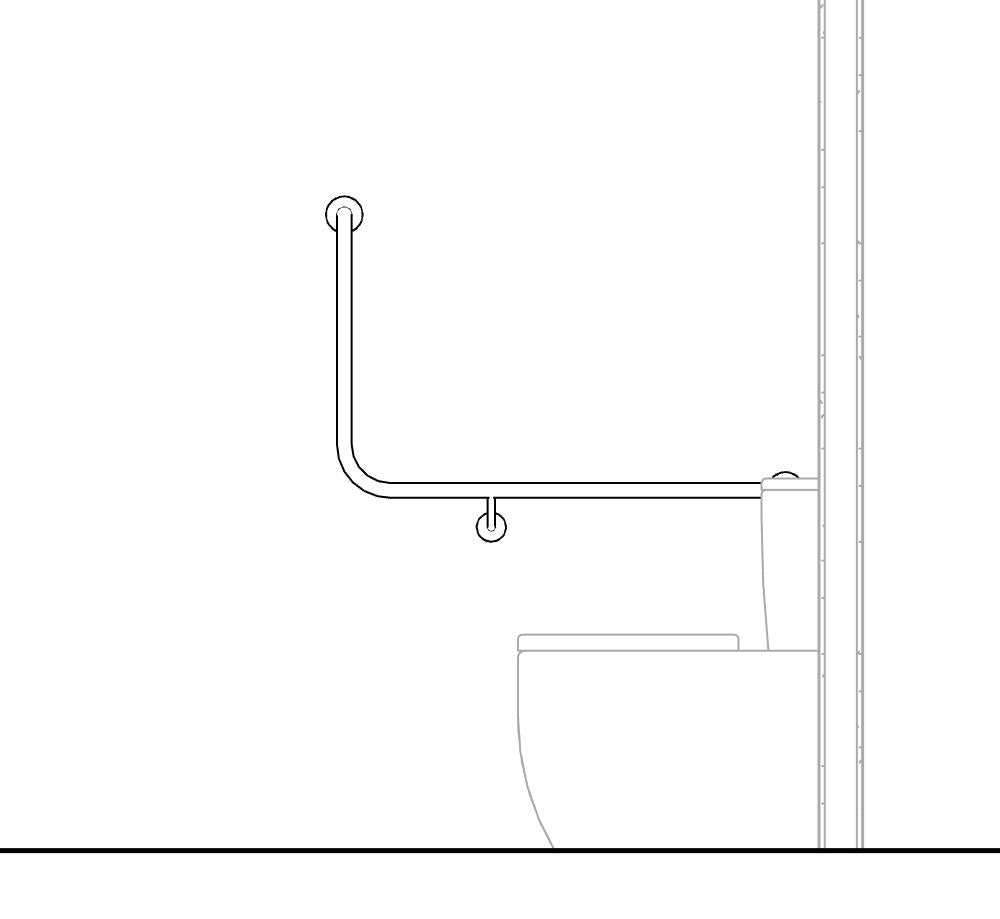

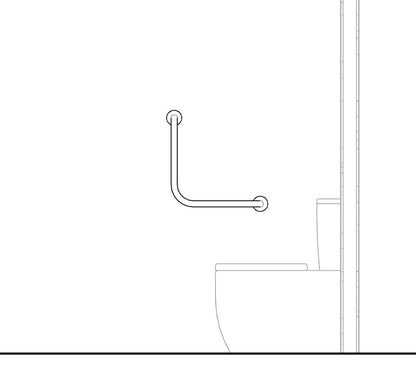

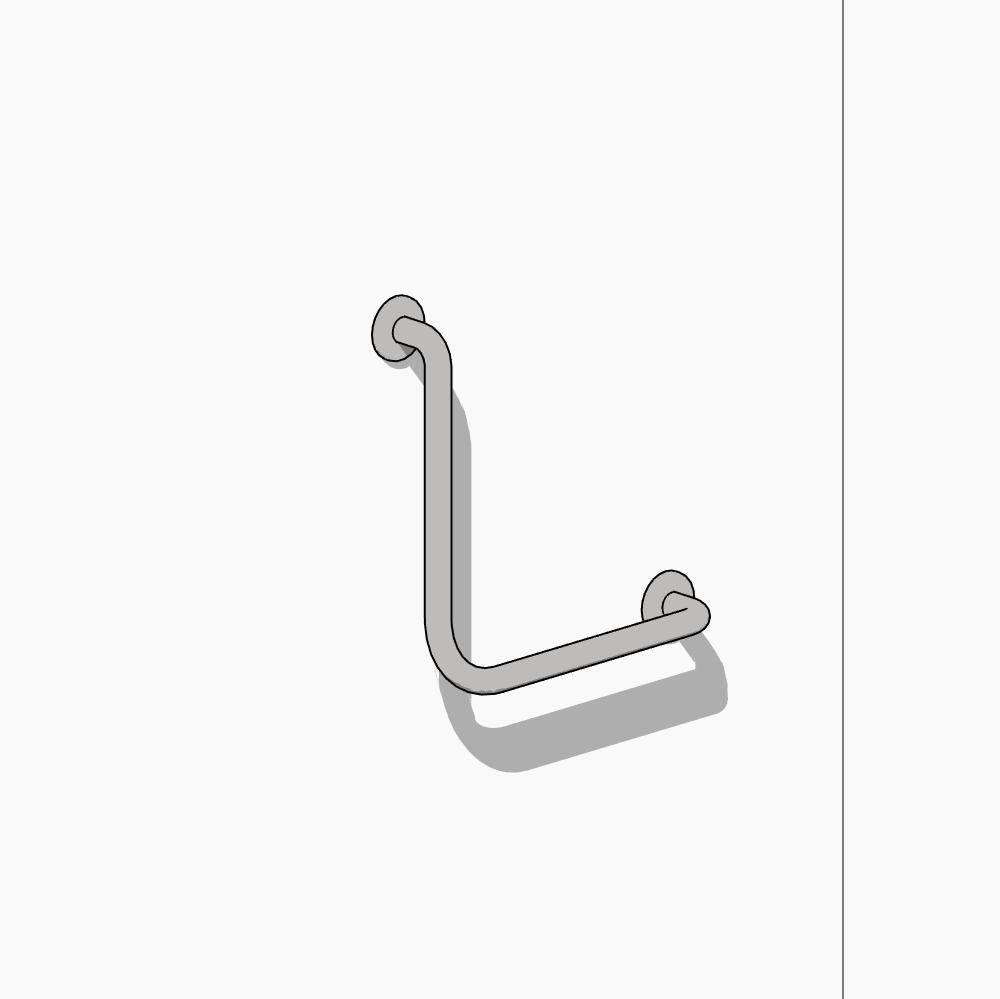

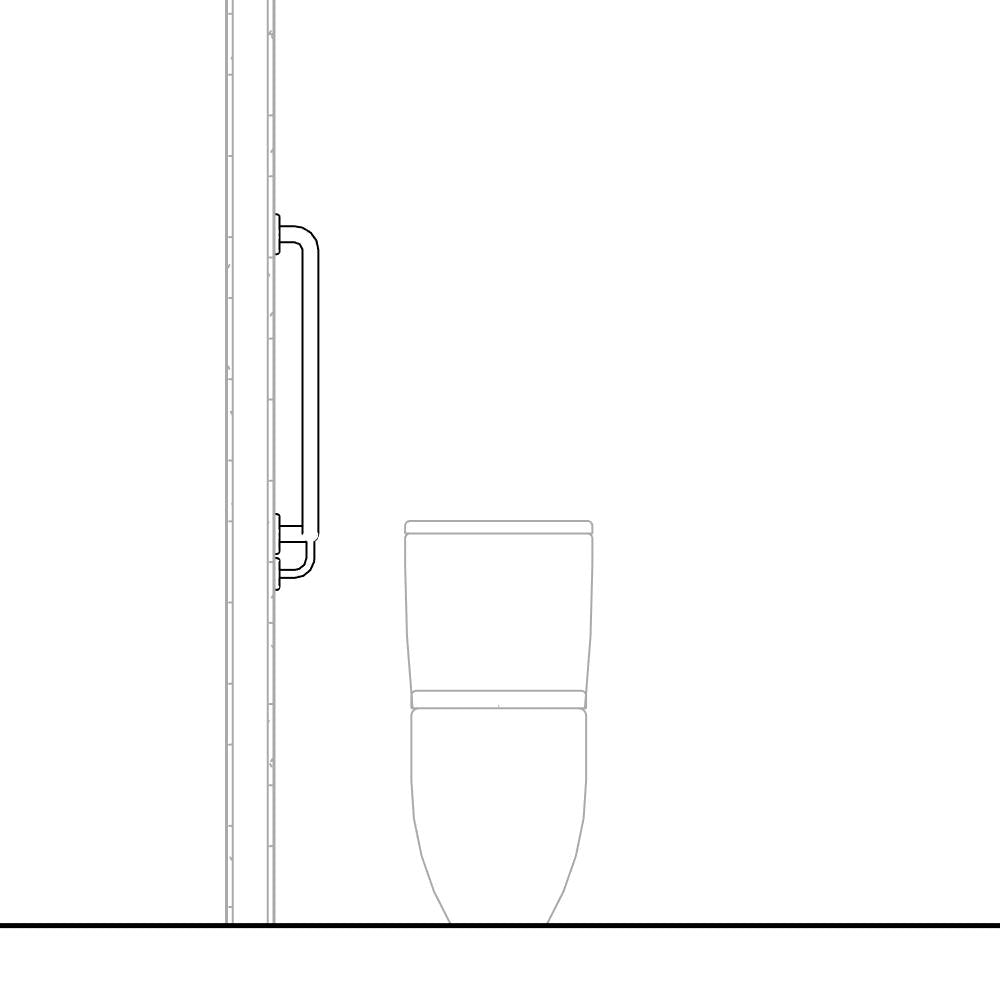

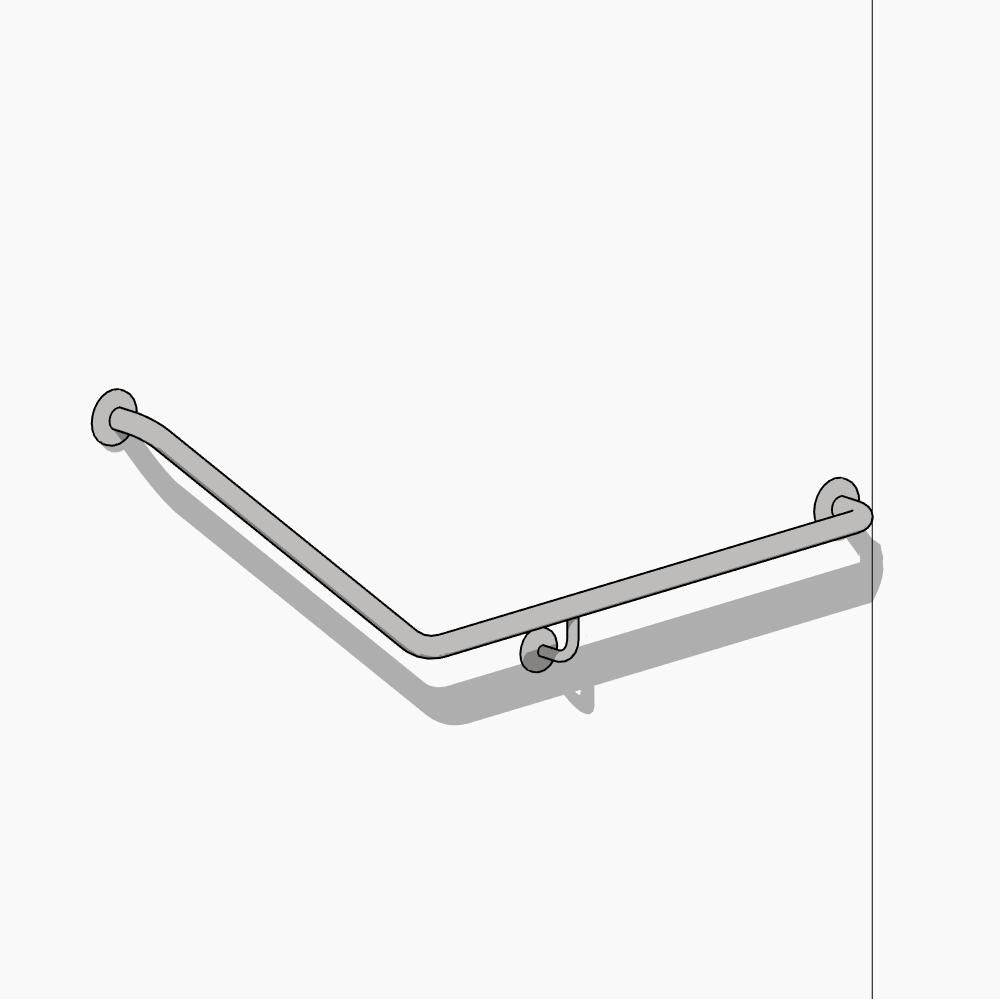

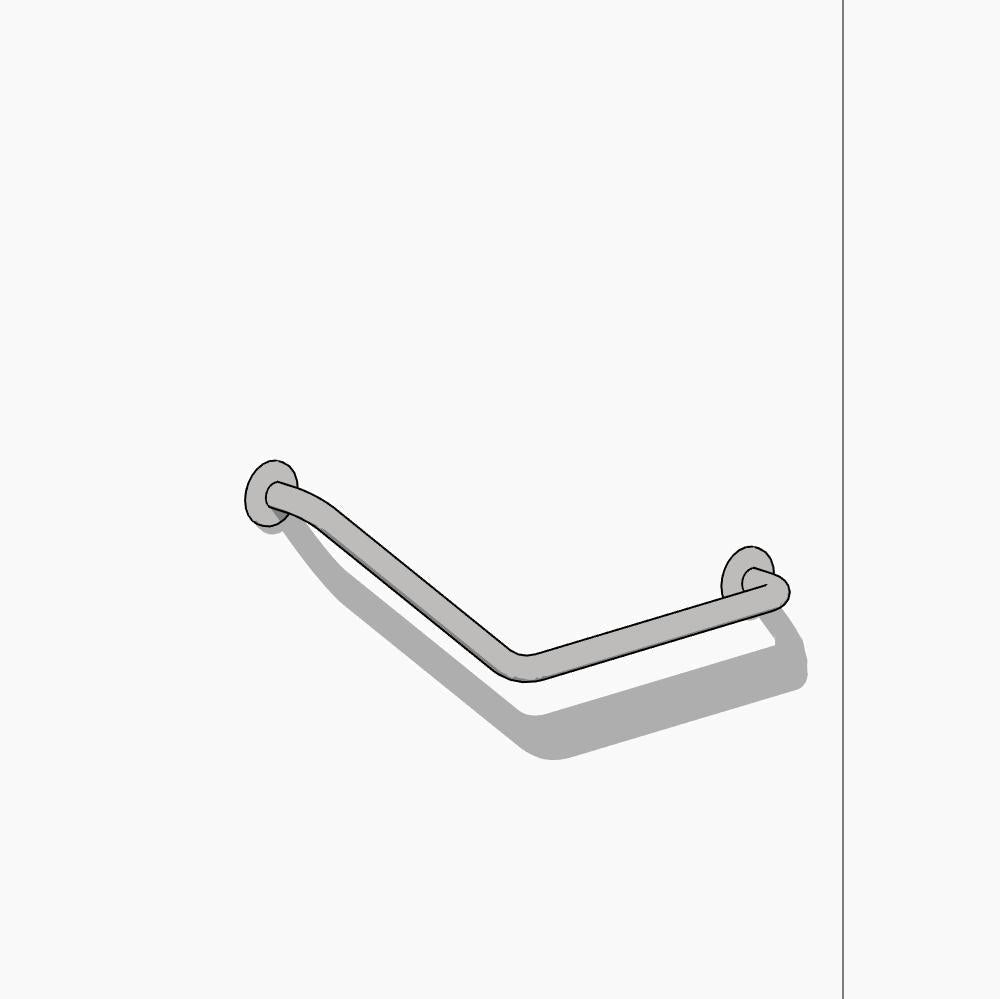

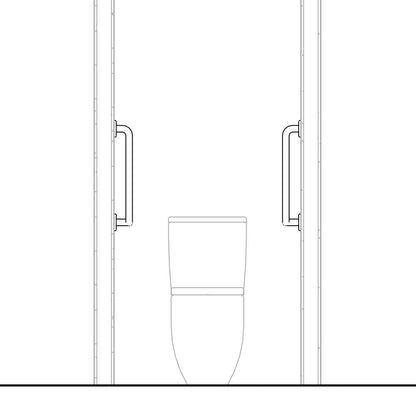

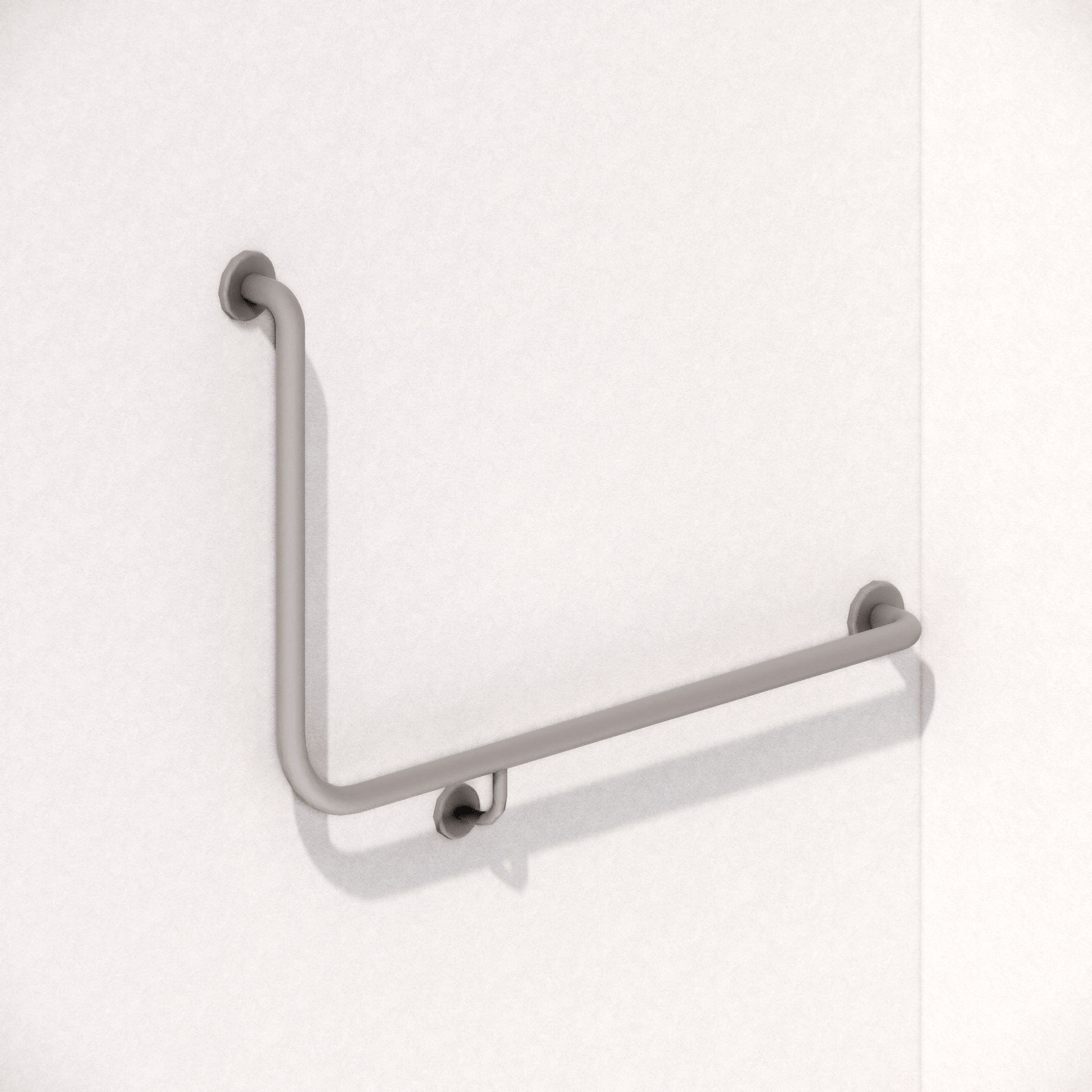

An adjustable Angled Grab Rail which is completely parametric, with the flexibility to meet any manufacturer equivalent. Most conveniently of all our Angled Grab Rail has been embedded with constraints to lock its dimensions to comply with Ambulant or Accessible requirements as per the Australian Standard 1428.1. But, this feature is just as easily disabled with a tick box if your countries constrains differ, simply manually adjust its extents to suit your liking.

This Angled Grab Rail family will no doubt be an incredible time saver for any Australian based Architectural firm, dramatically reducing the need to constantly check the Australian Standards.

Note: To the best of our ability we have built this family to be accurate to the requirements of the Australian Standards, but we are only human. Please confirm critical dimensions directly to the most current edition of the Australian Standard AS1428.1 and to consult with a qualified disabled access consultant to verify your projects requirements.


Family Type: Work Plane-Based

Family Category: Speciality Equipment

Custom Object Styles:

  • Grab Rails

Shared Family: Yes

PBR Texures: Yes
