DDA Door Clearance

DDA Door Clearance

Regular price $5.00 AUD
Regular price Sale price $5.00 AUD
Sale Sold out
  • Revit Version 2020
  • Family Version 1.0

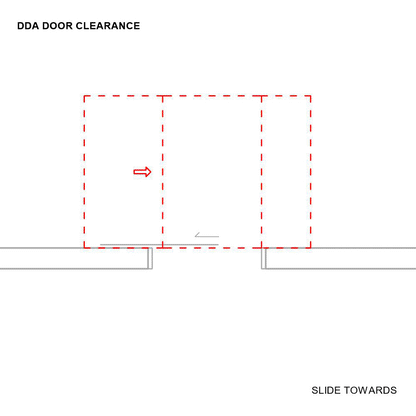

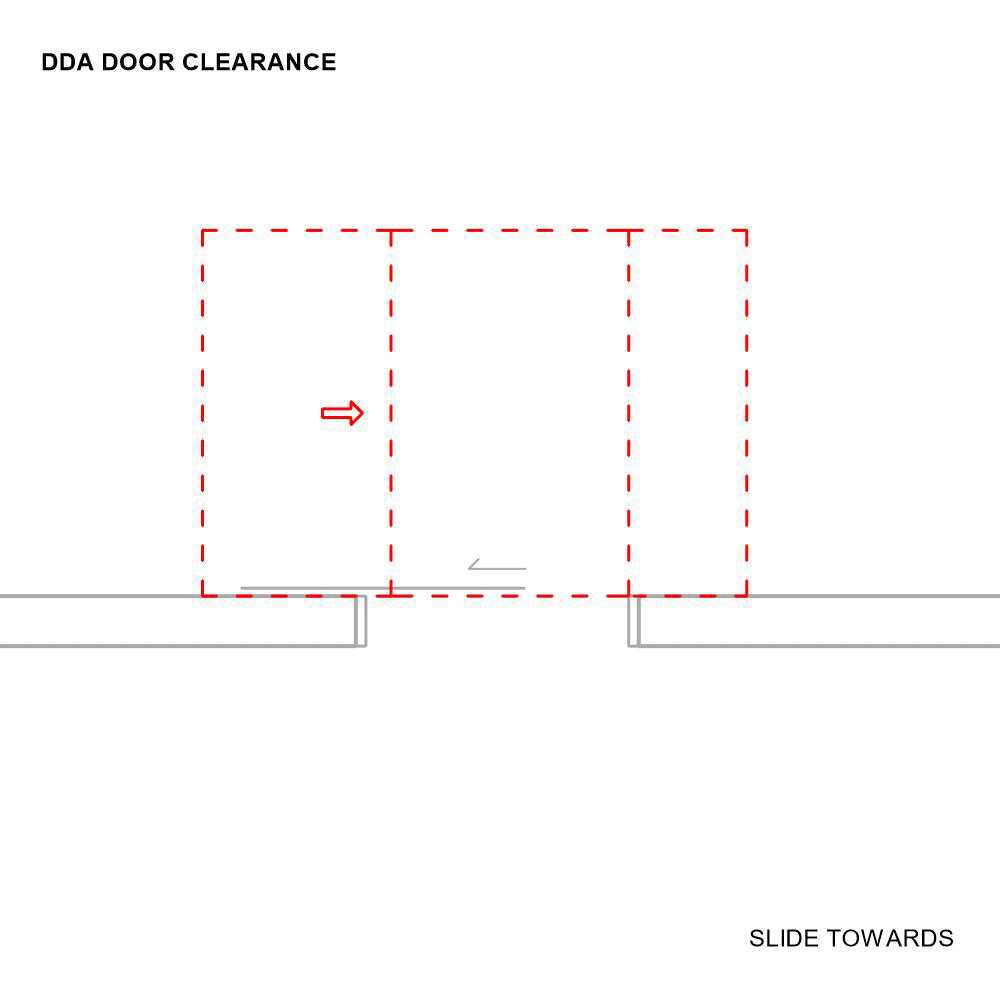

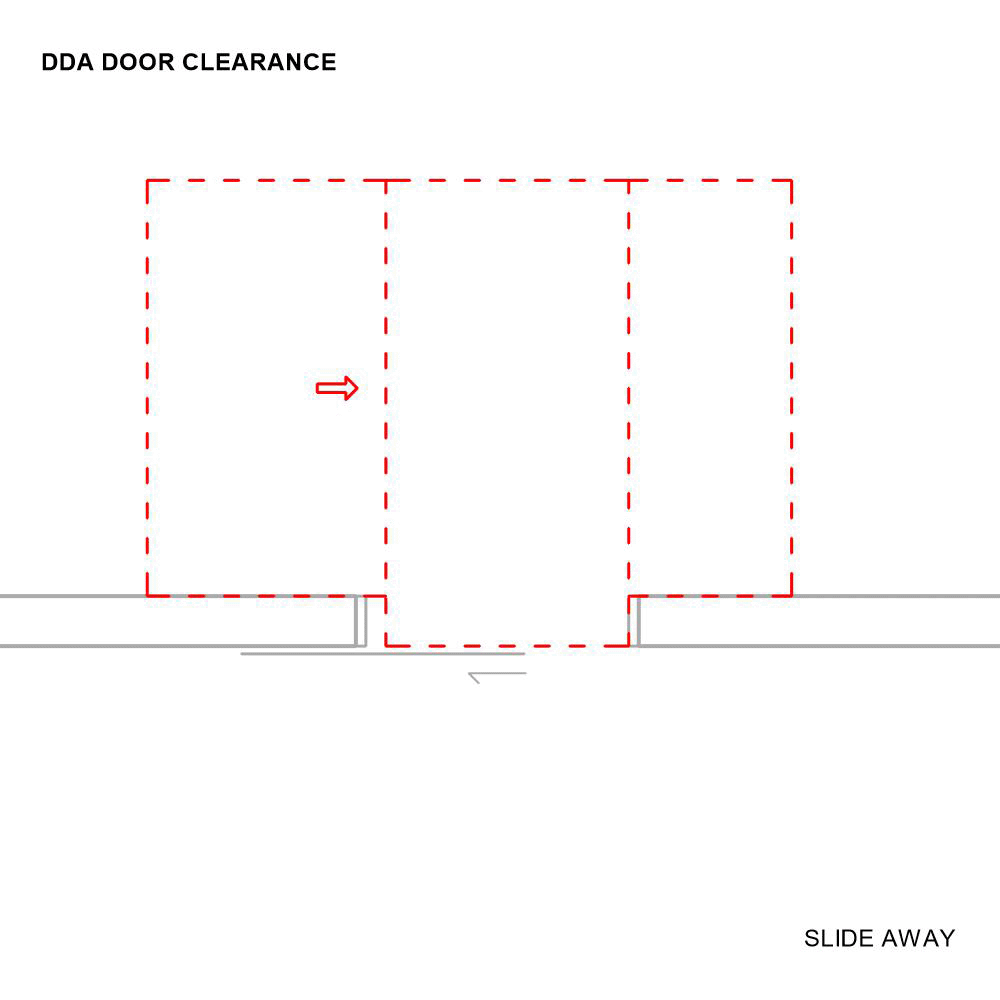

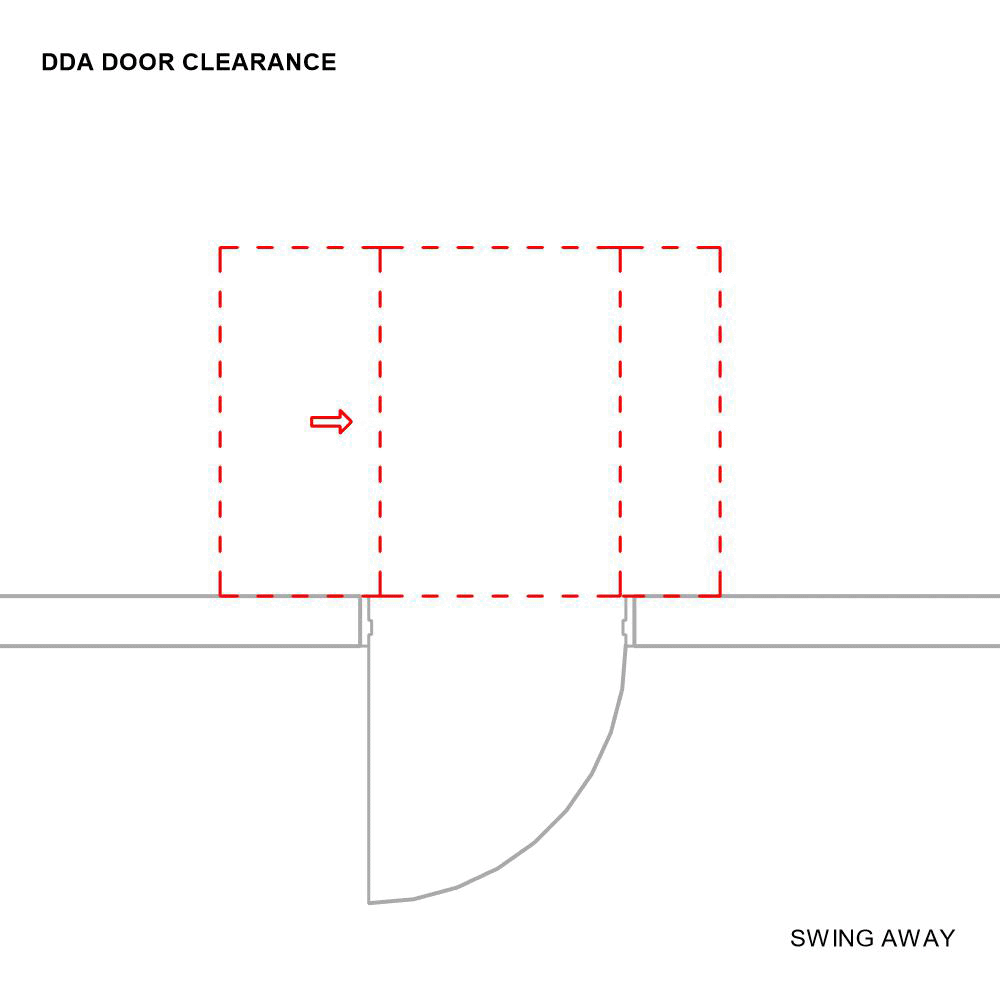

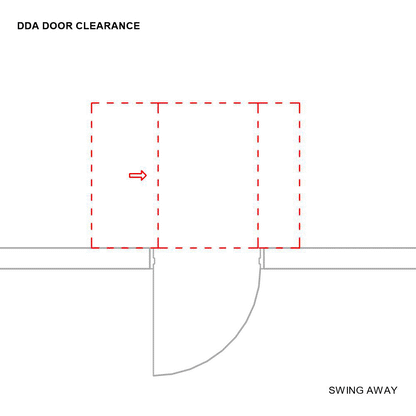

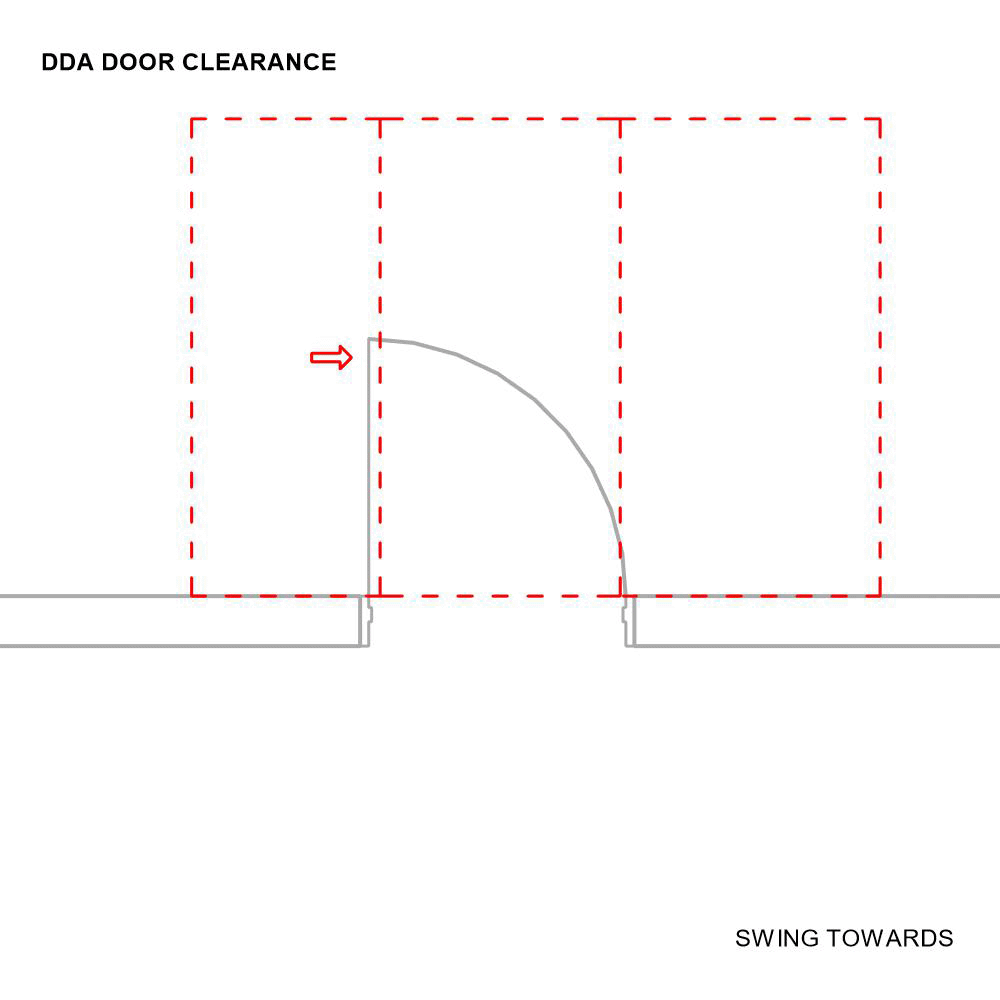

Clearance lines for doors requiring DDA (accessible/wheelchair) access. Based upon the Australian Standard 1428.1 this family has been built to be adaptable between swing, sliding, towards and away. With the ability to chose the standard width, direction of approach and wall depth, and have have the family update dynamically based upon all these factors.

This DDA Door Clearance family will no doubt be an incredible time saver for any Australian based Architectural firm, dramatically reducing the need to constantly check the Australian Standards.

Note: To the best of our ability we have built this family to be accurate to the requirements of the Australian Standards, but we are only human. Please confirm critical dimensions directly to the most current edition of the Australian Standard AS1428.1 and to consult with a qualified disabled access consultant to verify your projects requirements.


Family Type: View-Based

Family Category: Detail Items

Custom Object Styles:

  • DDA Clearance Lines

Shared Family: No

PBR Texures: N/A
