Multi Horizontal Chamfered Glazed Panel

Multi Horizontal Chamfered Glazed Panel

$0.00 AUD
$0.00 AUD
Sale Sold out
  • Revit Version 2020
  • Family Version 1.1

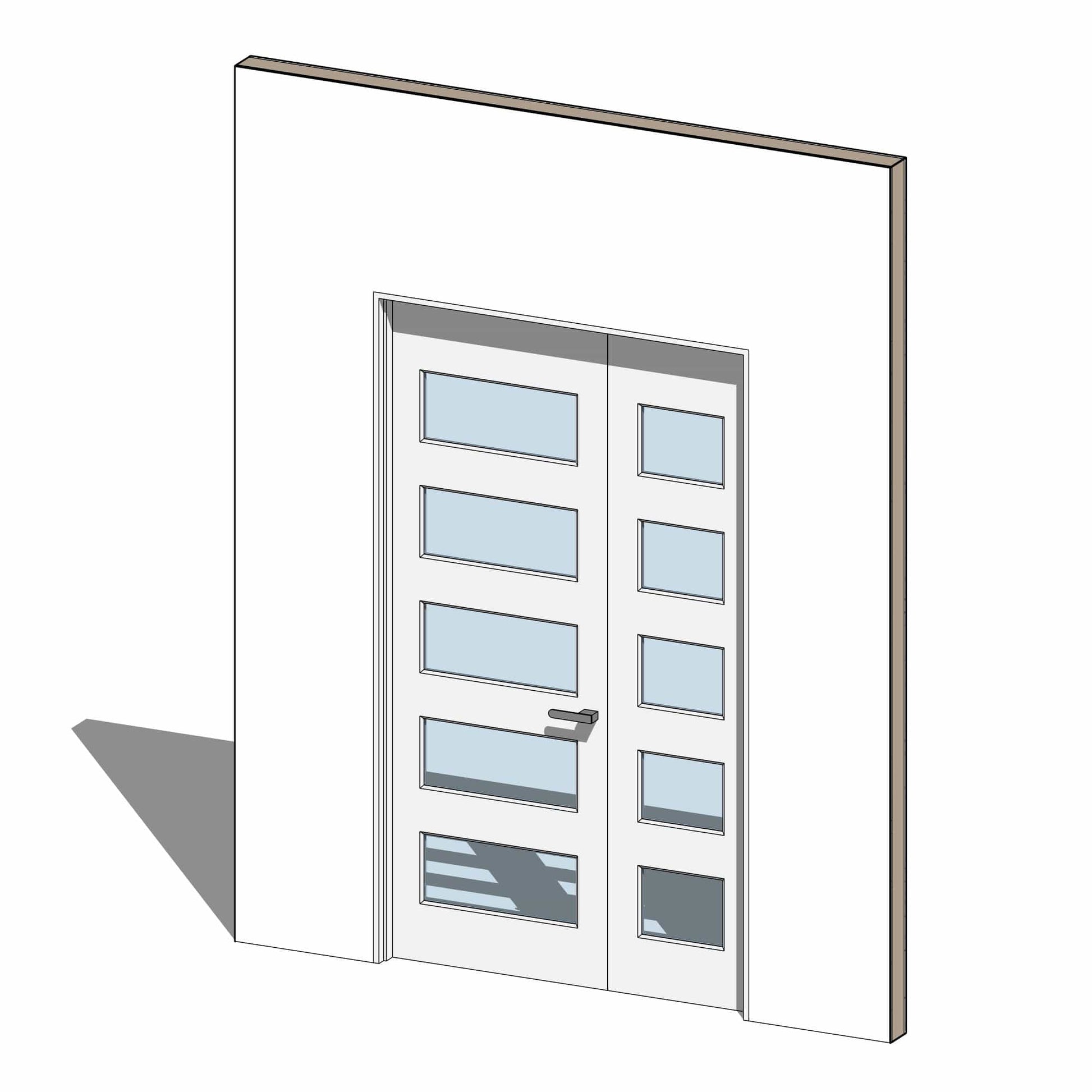

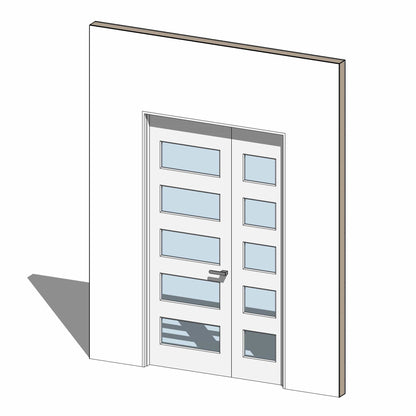

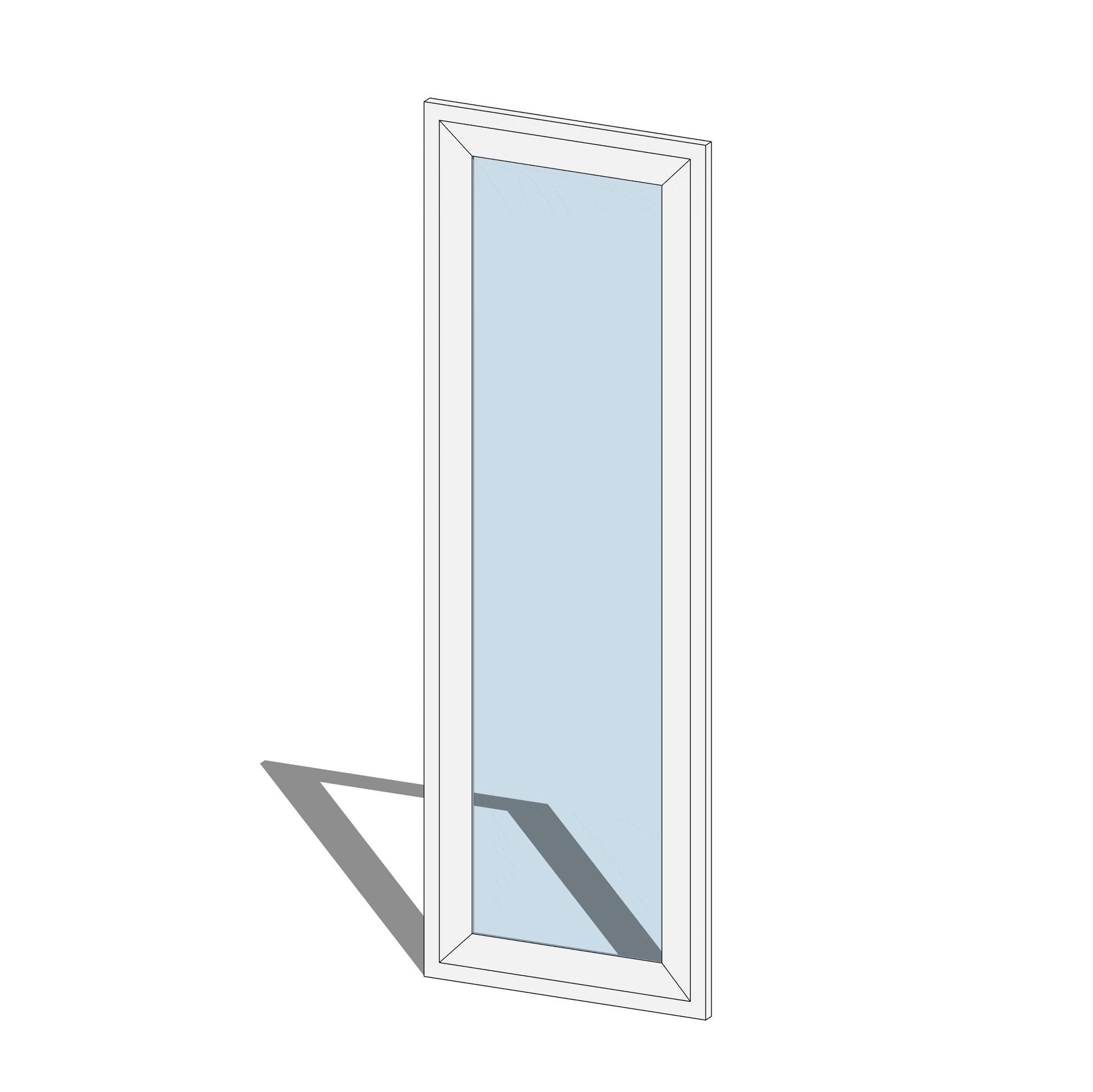

The Multi Horizontal Chamfered Glazed Panel is a highly adjustable multiple windowed glazed panel with chamfered edges.

This family is shared, so it can be loaded directly into your project and will appear in the nested panel type parameter of RevitHQ doors, ready to be swapped into your design without ever editing a family.

Properties
Operation

Family Type: Work Plane-Based

Family Category: Doors

Custom Object Styles:

Shared Family: Yes

PBR Texures: Yes

Designed to operate as a nested family within all BIMcraftHQ doors. Load the panel into your project and edit your doors type properties to swap in the new panel.

Version 1 Updates

Version 1.1

  • Updated an error in appearance when panel was enlarged beyond a certain point.
