Adjustable Scale Bar

Adjustable Scale Bar

$2.00 AUD
$2.00 AUD
Sale Sold out
  • Revit Version 2020
  • Family Version 2.0

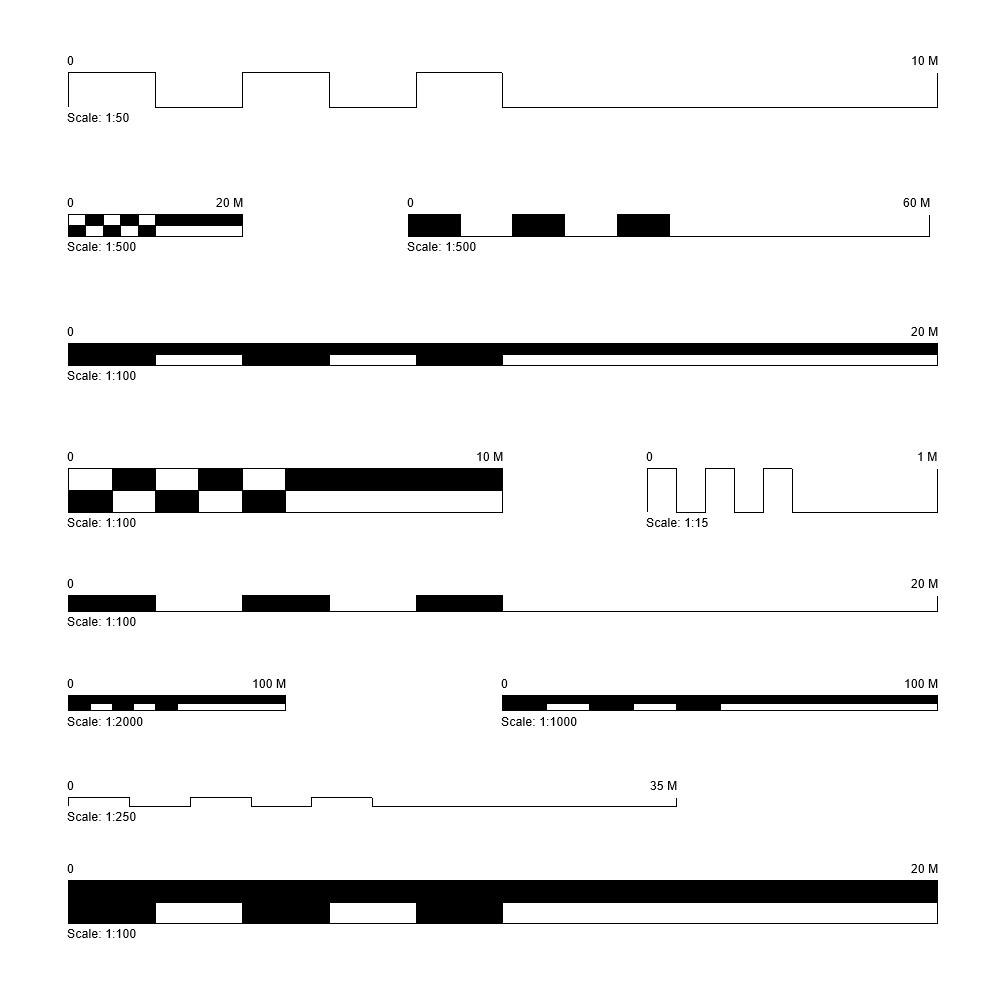

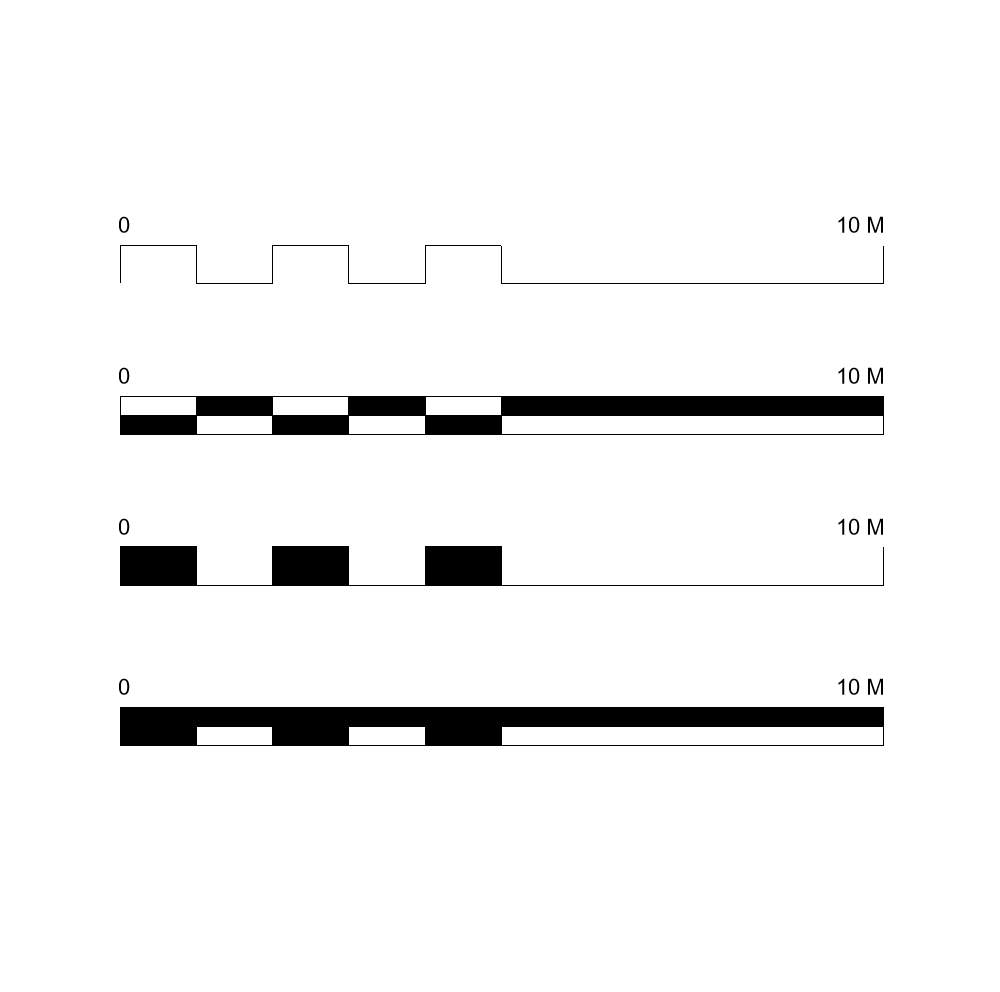

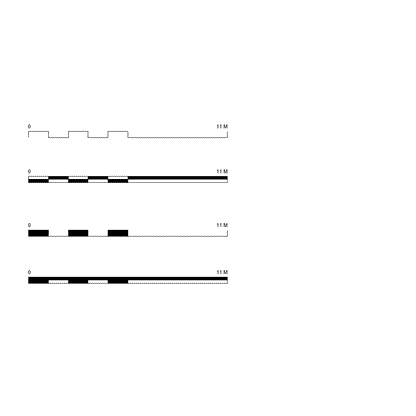

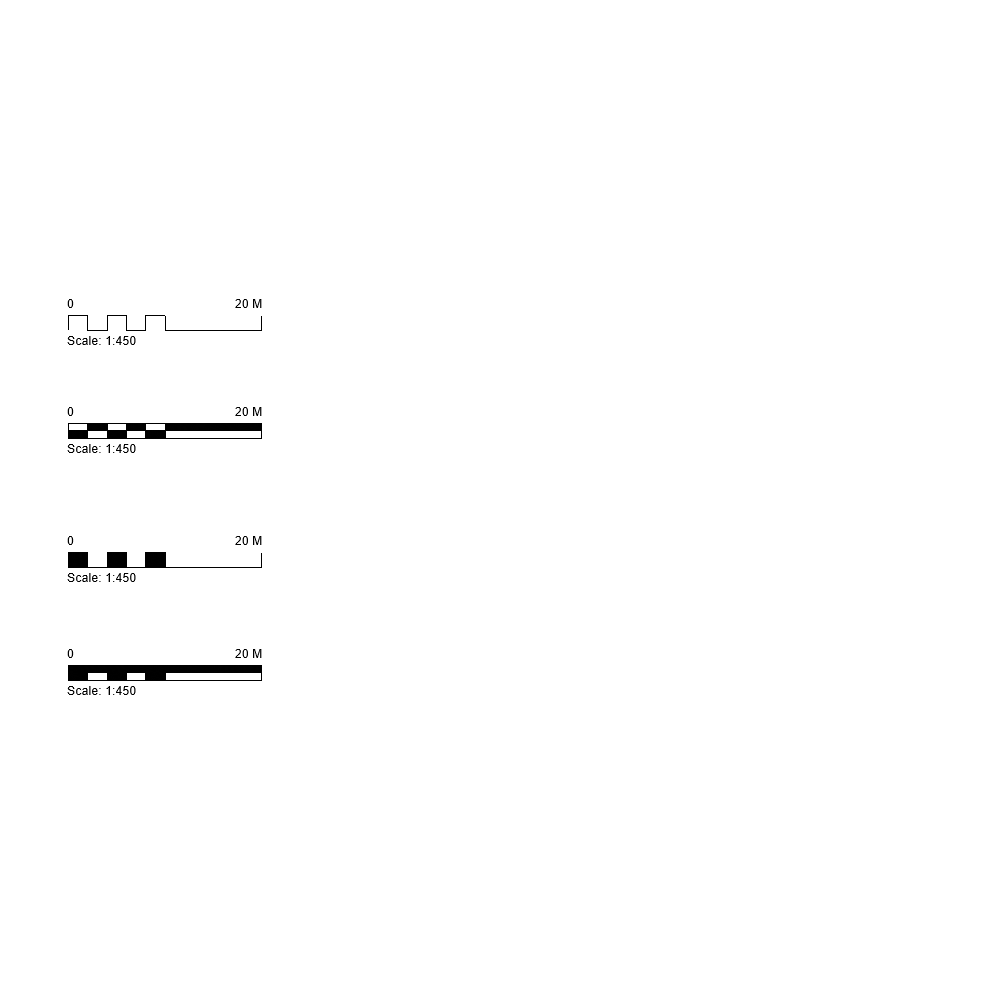

A simple yet powerful Adjustable Scale Bar family, with 4 styling options, perfect for embedding in your sheets or directly into your views. With just a few clicks this Adjustable scale bar will change on the fly between scales and lengths, correctly reorganising its size for your requirements. Do away with the many different sized scale bars in your family library, and save time with this intelligent addition.

Properties

Family Type: View-Based

Family Category: Generic Annotations

Custom Object Styles:

  • 2 Projection Line

Shared Family: No

PBR Texures: N/A

Version 2 Updates

Version 2.0

  • Updated family to have a constrained yet adjustable total length while still maintaining the correct scale appearance. This was important for nesting the family into title blocks and also gives the user more control over the exact length of the scale bar.
  • Updated family and shared parameters for integration with BIMcraftHQ project template.
  • Improved parameter naming and organising.
