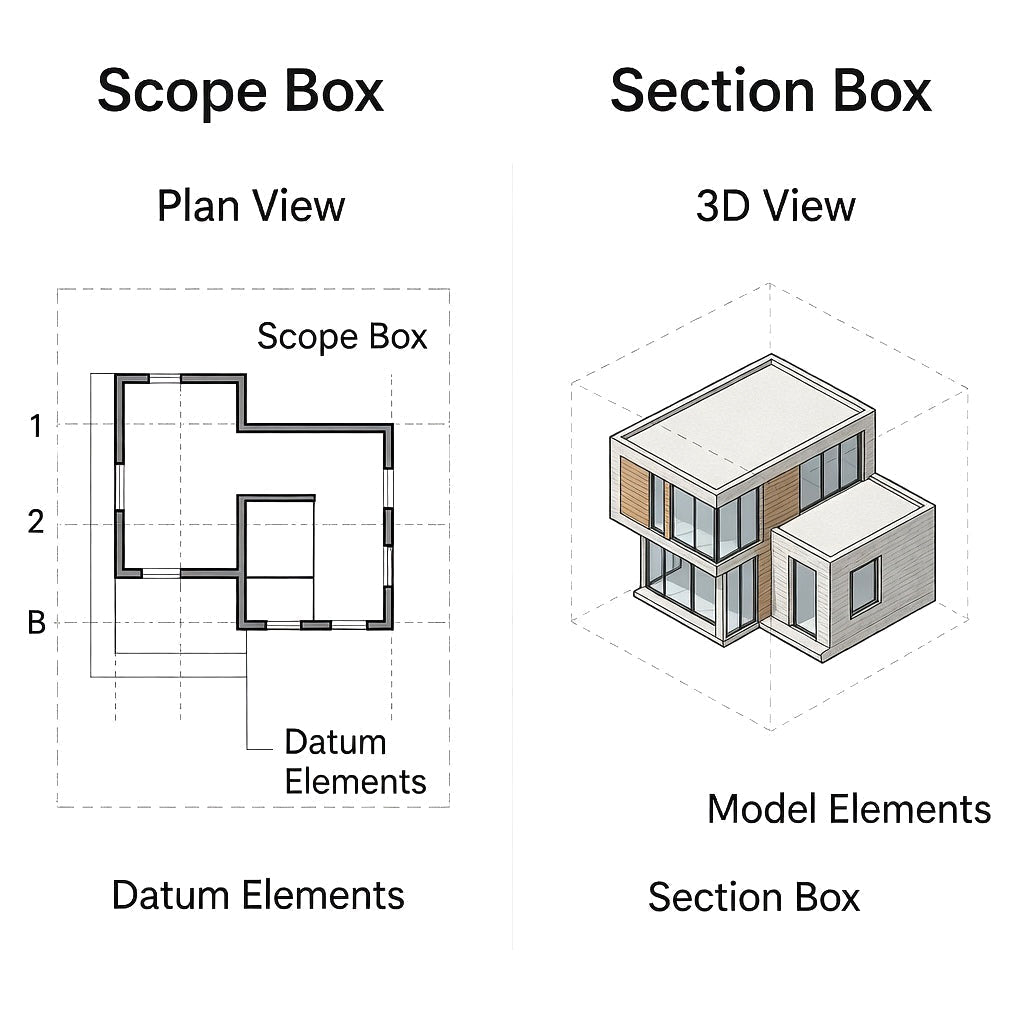

Revit Scope Boxes vs Section Boxes: The Workflow Guide You're Missing

If you're working on a project large enough that navigating floor plans becomes a chore, you've probably encountered both scope boxes and section boxes in Revit. They sound similar, they're both boxes, and they both help you focus on specific areas of your model. But that's where the similarity ends.

Understanding when to use each tool transforms how you manage views and coordinate across disciplines. One controls your view boundaries and datum extents. The other temporarily isolates geometry for modelling and visualisation. Getting this distinction right saves you from frustrating workarounds and makes large projects genuinely manageable.

What Scope Boxes Actually Do

A scope box is a named boundary that you place in your model to control two things: view crop regions and datum extents. That's it. It doesn't affect what geometry is visible. It doesn't cut through your model. It defines a 3D boxed area that multiple views can reference.

When you assign a scope box to a view, that view's crop region automatically matches the scope box boundaries. Change the scope box size, and every view using it updates instantly. This is powerful for maintaining consistency across floor plans, reflected ceiling plans, and other plan-type views that need to show the same area.

The second function is controlling grids and levels. You can assign a scope box to individual grid lines or levels and those datum elements will then only extend to the boundaries of the scope box, keeping your plans clean without manually adjusting each grid or level in every view.

Scope boxes are assigned to individual views via the Scope Box dropdown parameter in the Instance Properties of a view. For datum elements, you select the grid or level and assign the scope box in the same way through its Instance Properties.





What Section Boxes Actually Do

A section box is a 3D clipping tool that isolates a portion of your model. It works in 3D views, axonometric views, and perspective views. You adjust the six sides to frame what you want to see, and everything outside that box disappears from the view.

There are two ways to activate a section box. The first is ticking the Section Box parameter in the view's instance properties. The second is selecting an element in the view and clicking the Selection Box icon under the Modify tab, or using the keyboard shortcut (BX). The shortcut method is faster when you already know which element you want to isolate, as it sets the section box extents around your selection automatically.

Section boxes are brilliant for modelling in tight spaces. If you're working on bathroom layouts in a dense apartment building, you can section box just that unit and work without the visual clutter of the entire building. They're also essential for creating focused 3D views for coordination or presentation.

Section boxes also work in perspective views, which is worth knowing. You might want to hide context deeper in the model, or clip the view before opening it in a rendering engine so the non-visible context of the model doesn't need to load. In a perspective view, activate the section box by ticking the parameter in the instance properties. Adjusting it while looking through the camera can be awkward, so, a useful trick, click the section box in the perspective view to select it, then open a plan view without deselecting. You'll see the box extent and drag controls in plan, making it much easier to modify.

By default, section boxes are temporary. Turn off the parameter and you see the full model again. But you can make them permanent. Right-click the ViewCube in the top right corner and choose Save View. This creates a separate 3D view with its own section box settings preserved. From there you can lock the view, which lets you add dimensions and tags to the elements within it. These locked section box views can then be placed on sheets for documentation.

When to Use Scope Boxes

Scope boxes shine on large or complex projects where you need to divide the model into manageable zones. I have worked on projects so large that documenting them without scope boxes would have been a nightmare. Grids can extend across entire projects, and trying to focus on one area can mean constantly adjusting crop regions by hand over hundreds of drawings.

To combat this, split the project into numbered zones: Zone 1, Zone 2, Zone 3, Zone 4, etc. Not necessarily by function, it can be by logical area, grid orientation, or a breakdown mutually agreed by all project parties. Each view can then be cropped to a zone that will fit on your sheet at the right scale, and all other disciplines can then take those scope boxes and follow suit, resulting in a unified documentation package. When you need the full project view, just used views without scope boxes assigned.

One thing you will quickly learn is the importance of overlap. You need some overlap between zones so that walls and elements sitting on a zone boundary appear in both adjacent zones. Without that overlap, you risk missing coordination issues or splitting important areas across two sets of drawings.

On larger projects, document your scope box strategy as part of your BIM Execution Plan so everyone on the team knows the naming convention and boundaries. BEPs are a much bigger topic, but this is one detail worth including.

Scope boxes also help with dependent views. If you create a dependent view of a floor plan, you can assign different scope boxes to the parent and dependent views. This lets you create detailed call-out plans that maintain their relationship to the main plan while focusing on specific areas.



When to Use Section Boxes

If you're modelling complex joinery, coordinating MEP services in a ceiling cavity, or just trying to understand how a particular detail comes together, a section box cuts away the noise.

I use section boxes constantly when detailing or doing complex modelling. If I'm positioning a window family and need to see how the frame interacts with the wall layers, I'll section box just that area. The rest of the project disappears, and I can rotate around the detail without distraction.

For coordination, section boxes are invaluable. When you're reviewing a clash detection report and need to investigate an issue between structure and services, you can section box just that intersection. Share your screen in a coordination meeting, and everyone sees exactly what you're talking about without scrolling through the full model.

Tip:

If you select a scope box in a 3D view and then click the section box tool in the Properties palette, Revit will set the section box extents to match the scope box boundaries. You can then save that axonometric view and place it on a sheet. This bridges the two tools nicely, letting you create consistent 3D views based on your scope box zones.



Common Workflows and Best Practices

If your building fits comfortably on a single sheet and your grids don't overwhelm the plans, don't add complexity for its own sake. On small projects, you might not need scope boxes at all. Section boxes, though, are useful regardless of project size. Any time you need to focus on a 3D detail, reach for the section box.

For medium to large projects, establish your scope boxes during the schematic design phase. As the building massing develops, you'll start to see natural divisions. Maybe it's by building wings or by functional zones in a hospital or school. Name them logically and stick to that naming convention.

Assign scope boxes to grids and levels as you create them. This prevents the common problem of grids extending across the entire project when they only relate to one wing. If a grid does need to span multiple scope boxes, don't assign it to any scope box and manage its extents manually in each view.

For views, assign scope boxes selectively. Your main floor plans might not use scope boxes because you want to see the full floor. But your enlarged plans, dependent views, and area-specific plans might benefit from scope boxes to maintain consistent boundaries.

Section boxes are view-specific, so there's no project-wide strategy needed. Create them as you need them. The only best practice is to name your 3D views clearly so you can find them later. "3D View - Zone 1 Section Box" is better than "3D View 7."



Making It Work on Your Projects

Start simple. On your next project, create one scope box for a specific area that needs detailed documentation. Assign it to a few dependent views and see how it feels. Adjust the boundaries until they capture exactly what you need. If it makes your workflow smoother, add more scope boxes for other areas.

For section boxes, just start using them. Next time you're modelling something complex in 3D, turn on the section box and adjust it to frame your work area. You'll immediately see the benefit. The more comfortable you get with quickly adjusting section box extents, the more often you'll reach for the tool.

The goal isn't to use every Revit tool perfectly. It's to use the right tool for each task so you spend less time fighting the software and more time designing buildings. Scope boxes and section boxes are both simple tools, but using them intentionally makes a real difference in how manageable your projects feel.
